Norton 8501H BSP BLACK Friction Hold Open Door Closer Black
$229.99
Skip to product information
Norton 8501H BSP BLACK Friction Hold Open Door Closer Black
$229.99
Norton 8501H-690 Friction Hold Open door closer with full cover.
TRI MOUNT- PA BRACKET NOT SHOWN
FINISH BSP BLACK

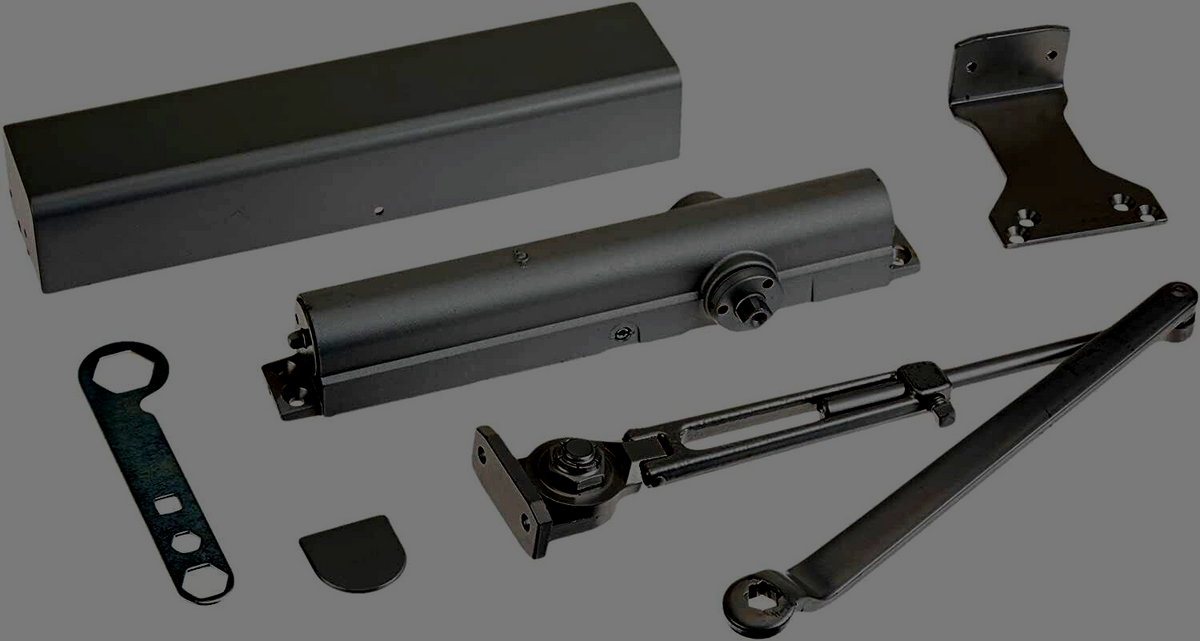

Includes
- Full Size Plastic Cover: 2-7/8" high x 2-1/8" deep x 13" long (73 x 54 x 330)
- Hold Open Arm
- Parallel Arm Bracket
- Fasteners
- Hold Open Adjusting Wrench
Features
- Adjustable spring sizes 1 through 6
- Tri-Style packaging standard (regular arm, top jamb and parallel arm mounting)
- Non-handed
- Staked valves
- Cast aluminum body

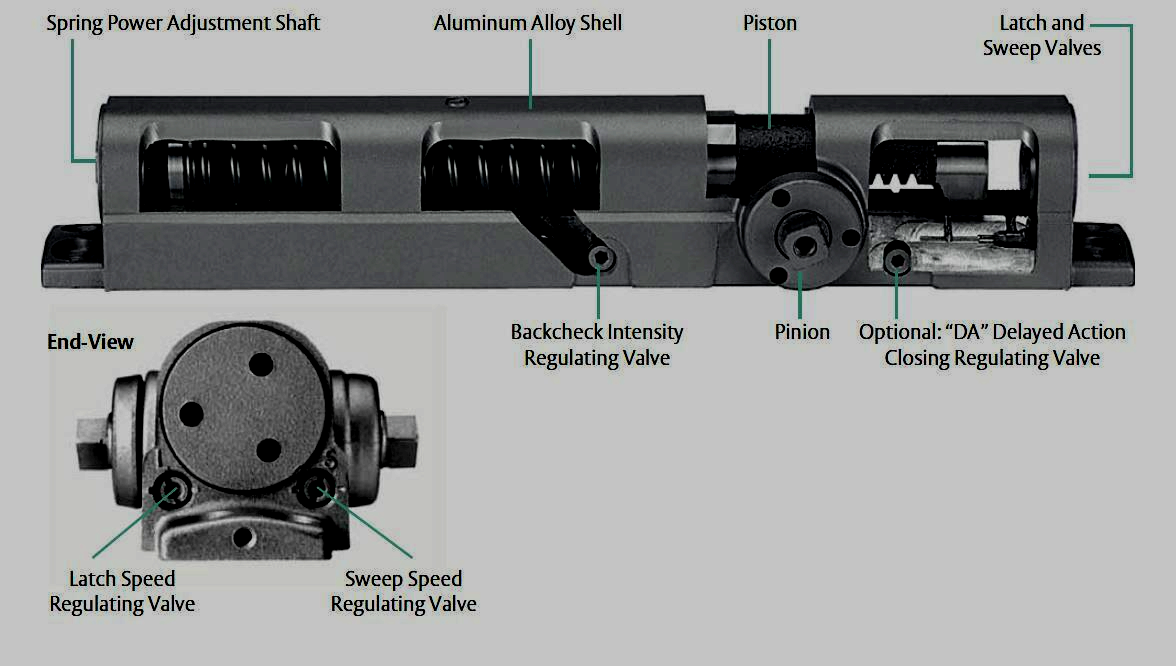

- Rack and pinion design
- 1-1/4" (32mm) diameter piston
- 5/8" (16mm) diameter pinion journals
- 2-1/8" (54mm) projection (standard covers)
- Full size template
- Standard, separate and independent, latch, sweep and back check intensity valves
- 25-year limited warranty
CERTIFICATIONS
- ANSI/BHMA A156.4, Grade 1 certified
- UL / CUL listed for use on fire rated doors
- UL10C listed for positive pressure fire test
- 8301 and 8501 door closers are designed to comply with requirements for the Americans with Disabilities Act (A.D.A)and ANSI standard A117.1
- This product is manufactured in an ISO 9001 facility
