BOMMER SWING CLEAR HINGE LB8020-045R-639 FULL MORTICE 4 1/2 (1 EACH) US10
$49.95
Skip to product information
UP FOR SALE IS ONE (1)
BOMMER SWING CLEAR HINGE LB8020-045R-639 FULL MORTICE 4 1/2 (1 EACH) US10
$49.95

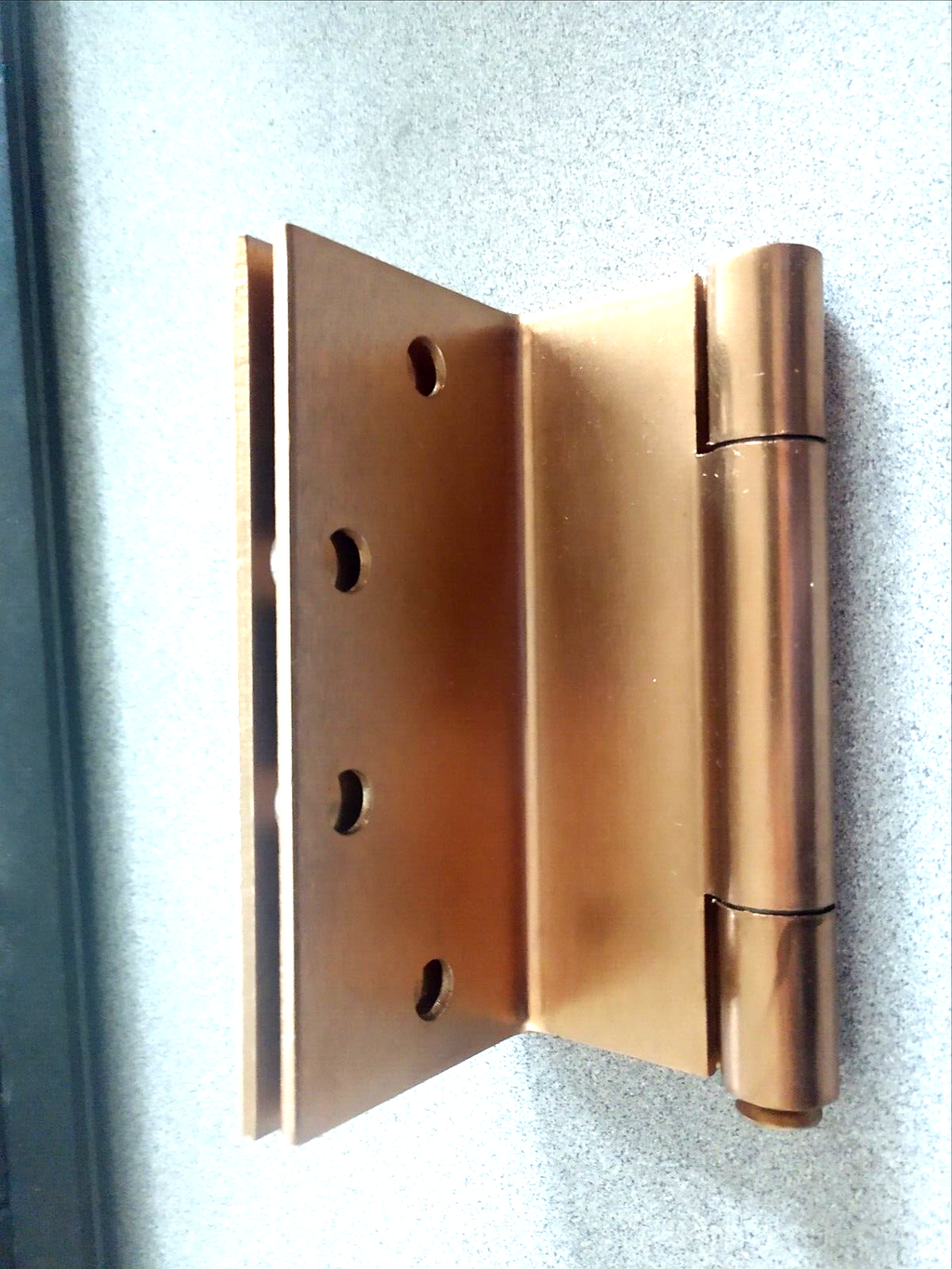

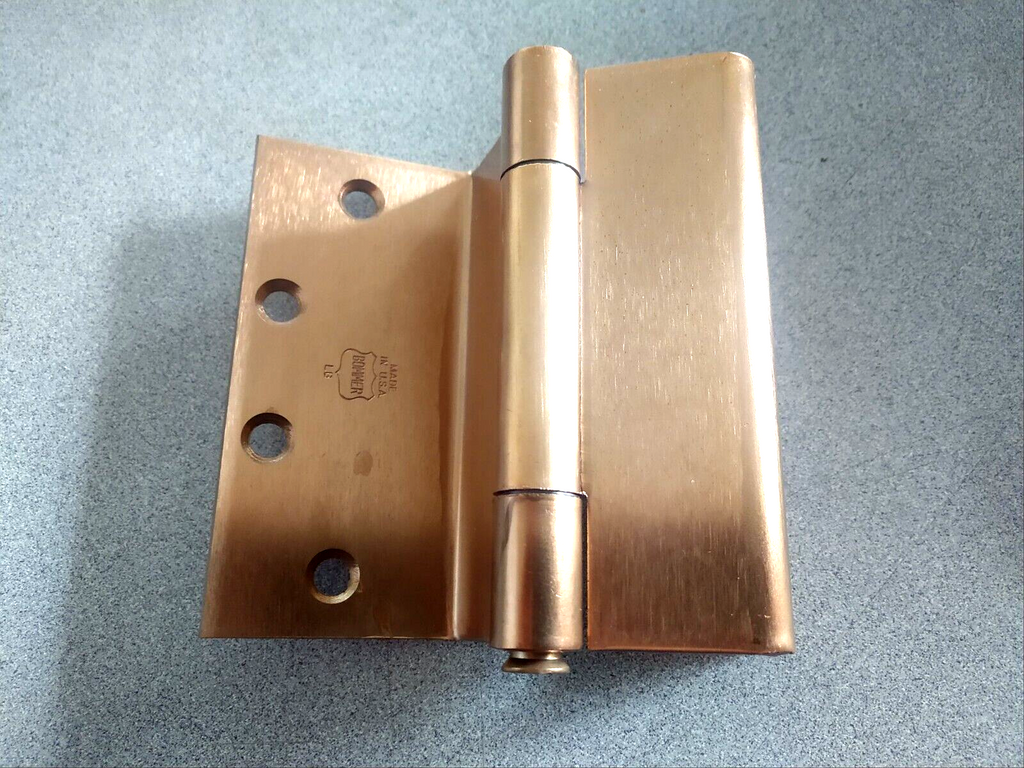

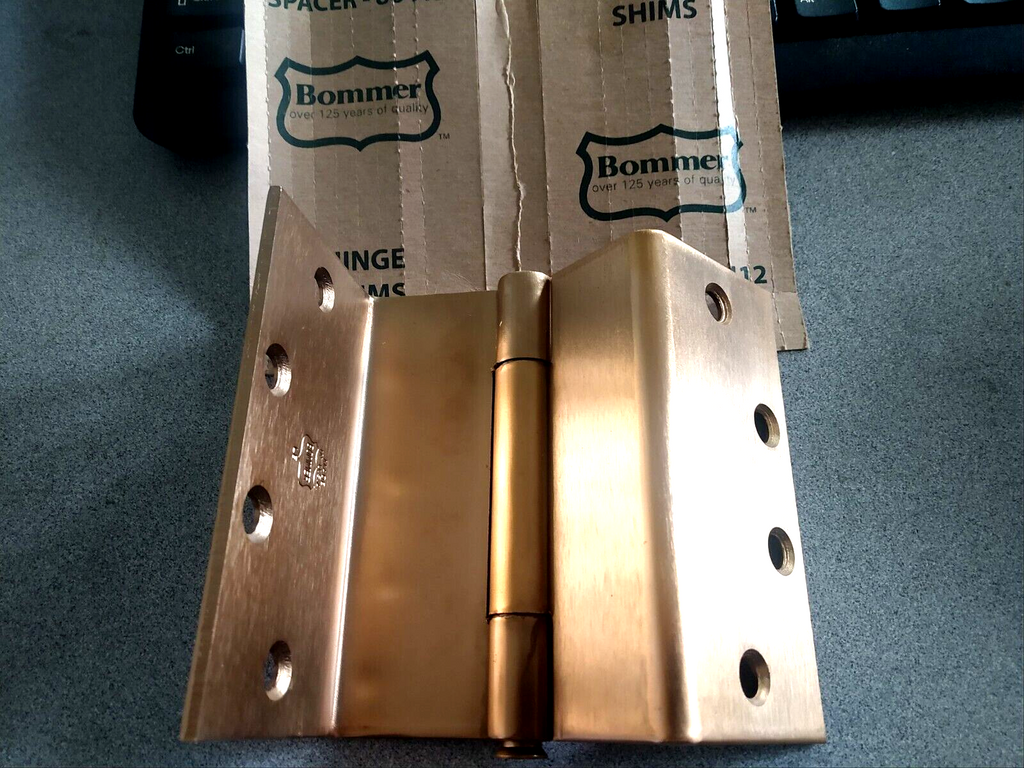

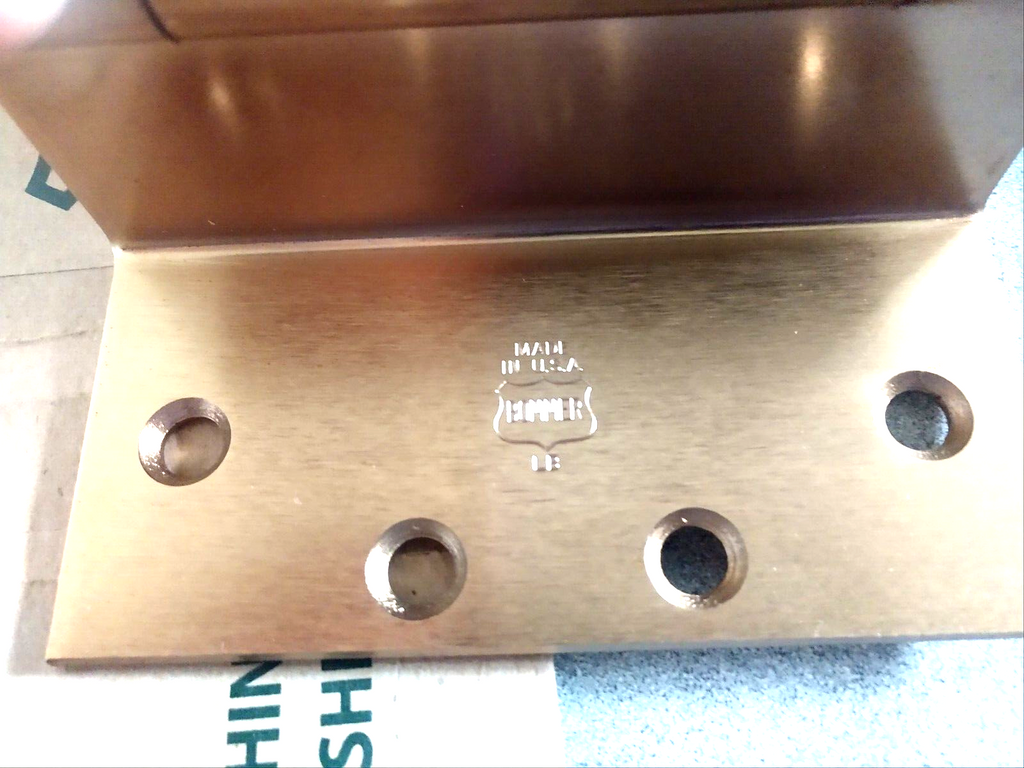

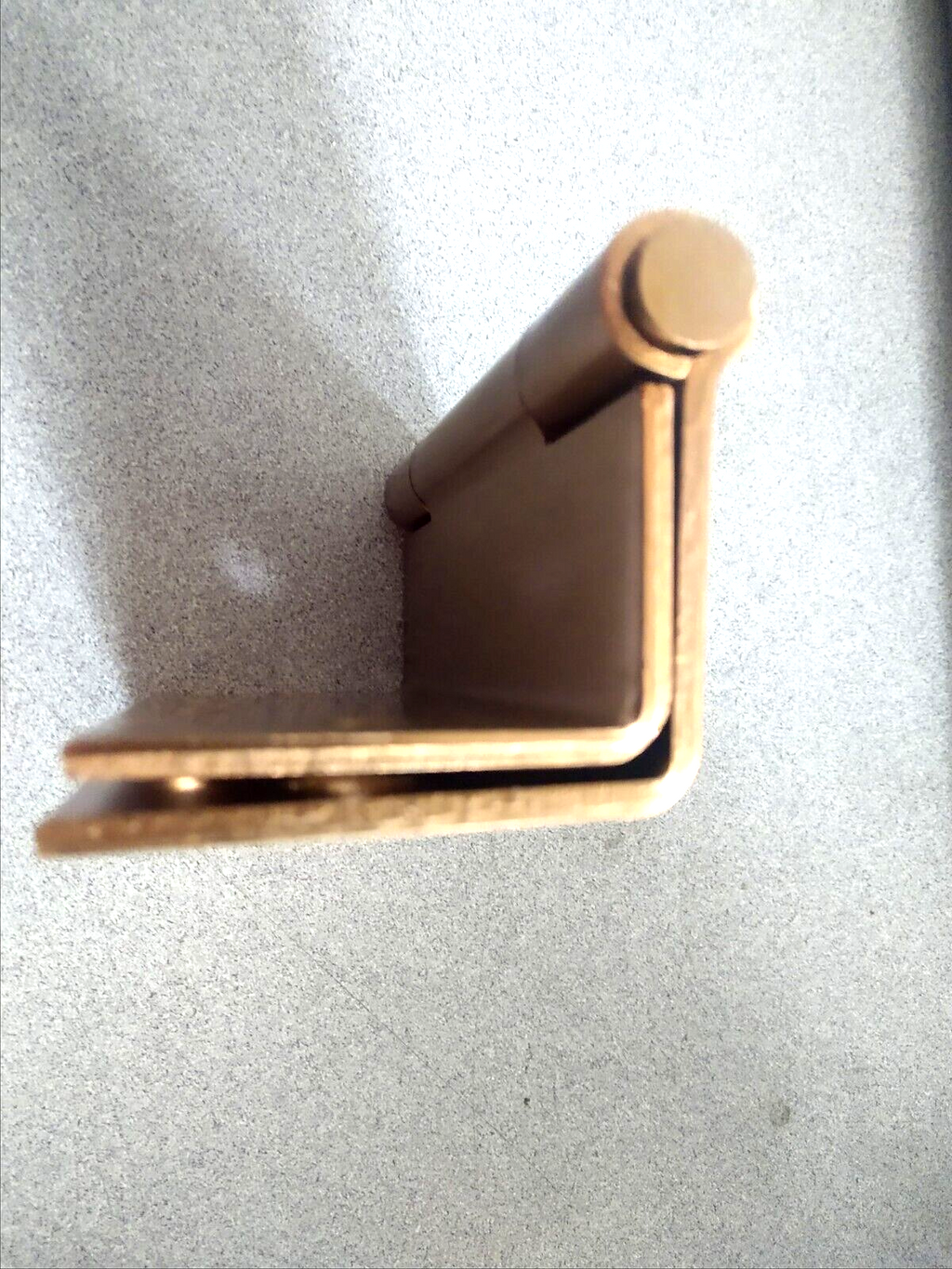

Bommer LB8020-045R-639 Hinge
FINISH US10 BHMA 639 SATIN BRONZE
MADE IN USA
Standard Weight, Lube Bearing, Swing Clear, Full Mortise, Square
4 1/5" HIGH SWING CLEAR
"R" FOR SQARE EDGE DOORS
For medium weight doors / average frequency. Used where conditions require the door
to completely clear the opening at 90 degrees.
SIMILAR TO STANLEY FBB248 BUT WITH THESE THEY ARE LUBE BEARING
- LB8020 Series
- Standard Weight
- Lube Bearing
- Swing Clear
- Full Mortise
- Template
- Three knuckle
- Non-rising removable pin
- Flush tip pin & plug
- Use on 1-3/4" door maximum
- Specify door edge square or beveled
- Size: 045R
- Hinge Height: 4.5"
- Gauge: 0.134
- Door Edge: Square
- Machine Screw: 12-24 x 1/2"
- Wood Screw: 12 x 1-1/4"
- Of Hole: 8"
- Material: Steel
- Finish: US 10 BMHA 639 SATIN BRONZE
- Packing & Sold as: Each.
- Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
