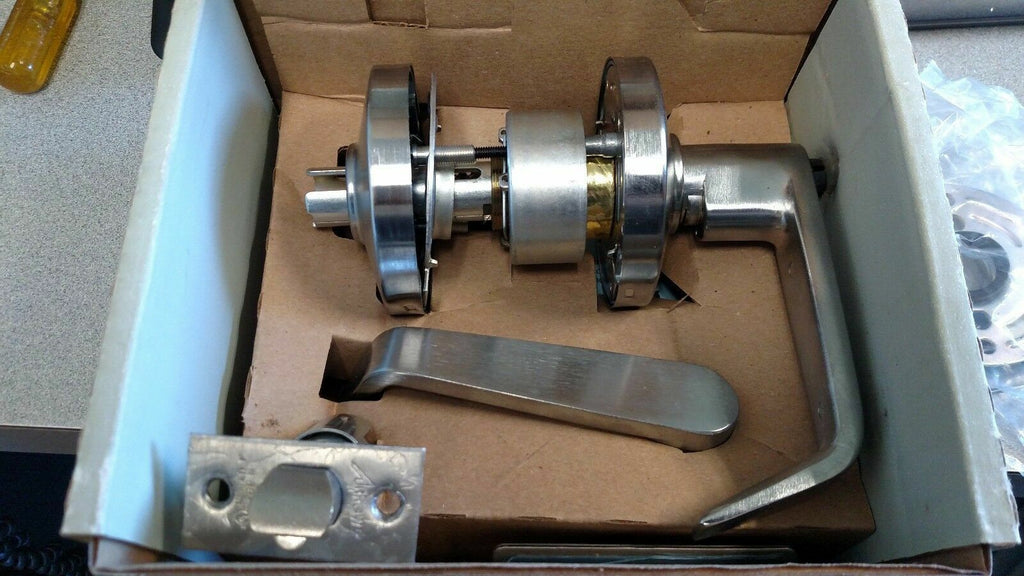

UP FOR SALE IS ONE (1) ARROW ML17 SR IC 26D LESS CORE

PREPPED FOR SFIC (BEST TYPE SMALL FORMAT ) CYLINDER

FINISH US26D

BACKSET 2 3/4"

HANDLE DESIGN SIERRA

MADE IN USA

WILL SHIP VIA USPS OR UPS (OUR CHOICE) INSURED

LSSB
arrow logo ML Series Less Core Cylindrical Lock with Sierra Lever and R Rose
  • Function: Classroom - Dead locking latch bolt operated by lever from either side except when outside lever is locked from outside
    by key. When outside lever is locked, latch bolt is operated by inside lever.
  • Core: Not included.
  • Handing: Non handed.
  • Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm) standard.
  • Backset: 2-3/4" ( .
  • Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Latch retractor is precision cast steel. Requires standard 2-1/8" (53.97 mm) bore through door.
  • Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) diameter bore in edge of door required. Supplied with #K-179 sleeve for use with existing 1" (25.40 mm) holes.
  • Latch Front: Brass, bronze. 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), beveled UL latches are standard.
  • OverDrive™ : Freewheeling lever action occurs when latch retraction mechanism disengages from lever handle when handle is locked. Built-in stops in the rose insert prevent lever from traveling beyond approximately 57 degrees. Additional 40% spring power in rose insert on OverDrive™ side of door ensures that lever handle returns to horizontal position.
  • Strike: Brass, bronze or stainless steel. ANSI A115.2, 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm) curved lip o
  • Mounting: Thru-bolts within 2-1/8" (53.97 mm) cross bore. Contains two support plates which secure to face of door as well as accept thru-bolts from inside rose assembly.
  • Cylinder Options: Interchangeable core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best™, Falcon™ and other similar style cores. Suffix “IC” to design. High Security–For cylinders meeting UL437 for pick and drill resistance, consult cylinder section of Sweets catalog for complete range of options.
  • Finish: US26D.
  • Certification & Compliance:
    • ANSI/BHMA A156.2, Series 4000, Grade 2
    • Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
    • Federal Specification FF-H-106C
    • ANSI A117.1 Accessibility Code
    • California State Reference Code–for levers returning to within 1/2" (12.7mm) of door surface.
