ADAMS RITE 1870HM 1 1/8" BS BOLT LOCK ALUMINUM
$119.95
Skip to product information

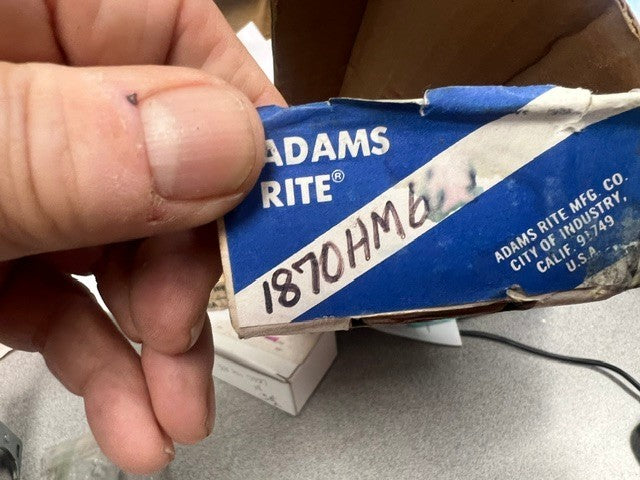

UP FOR SALE IS ONE (1) ADAMS RITE 1870HM IN ALUMINUM
ADAMS RITE 1870HM 1 1/8" BS BOLT LOCK ALUMINUM
$119.95
1 1/8" BACK SET
ALUMINUM FINISH
LESS CYLINDER
DOES NOT INCLUDE OPTIONAL 4/20 THREADED ROD EXTENDER
Overview

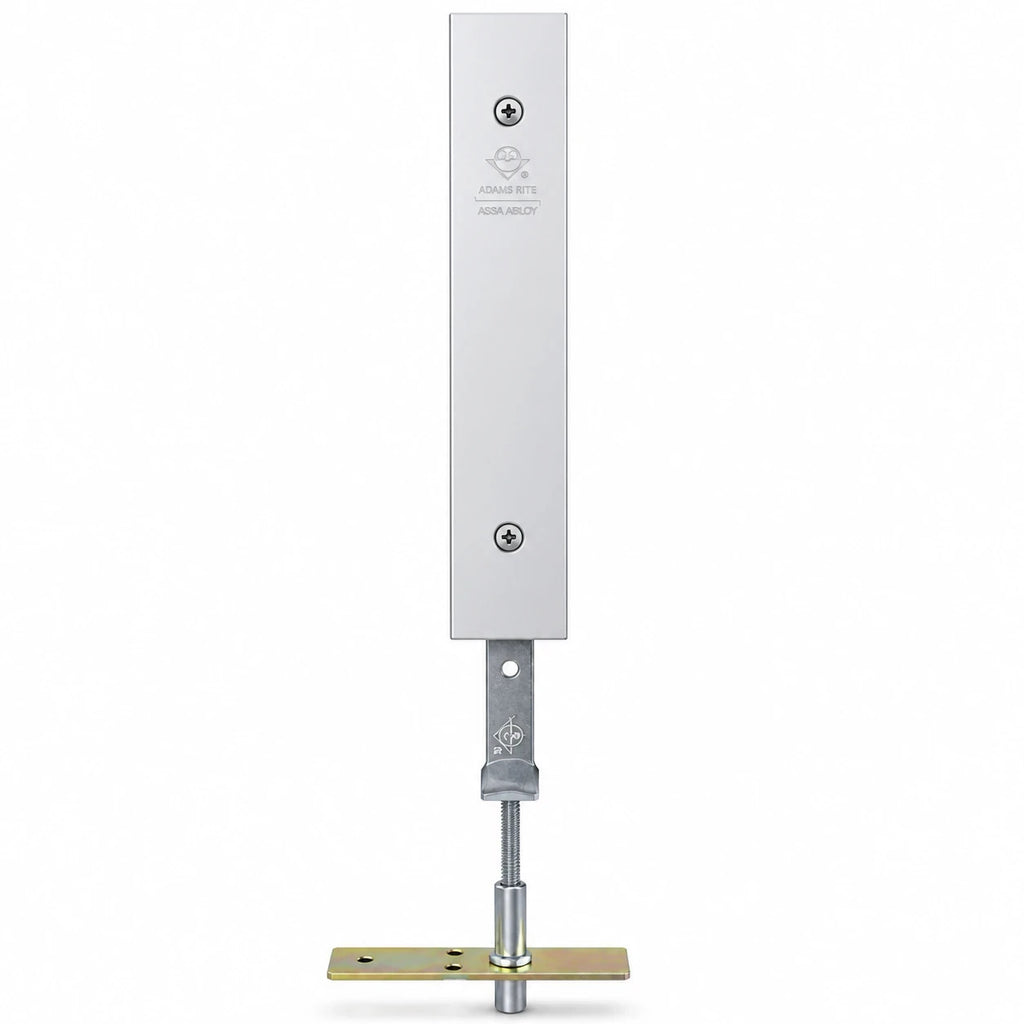

- Designed for use instead of conventional flip-lever operated flushbolts, the 1870HM Cylinder-Operated Flushbolt gives building management key control of the inactive leaf of paired doors.
- 360° turn of key throws or retracts the hex-section bolt. Key can be removed only when bolt is in a positively locked or unlocked position.
- Flat faceplate.
- Case: Measures 1” x 6” x1-25/32".
- Standard length (cylinder center to retracted bolt tip) is 13-1/2” with ± 1-1/4”
- Faceplate: Measures 1" x 6-7/8".
- Mortise cylinders not included.
- 628 Clear anodized finish
- .
- Non handed.

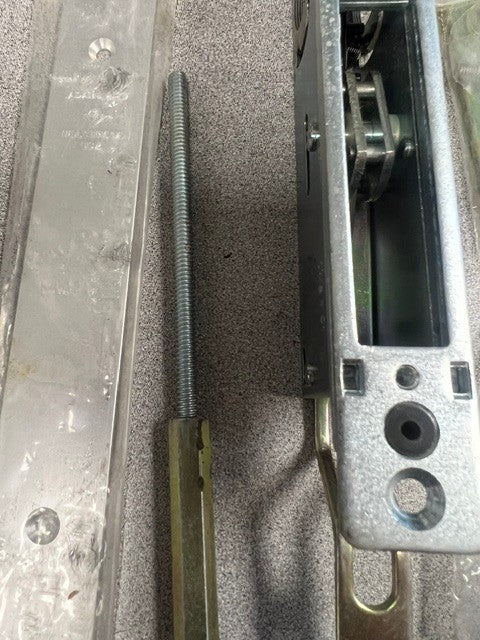

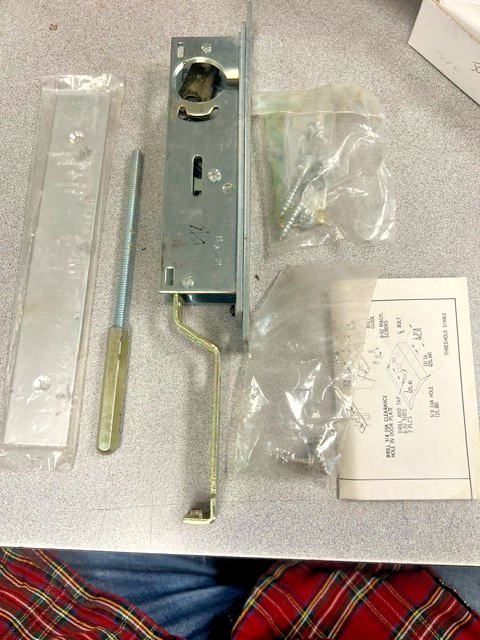

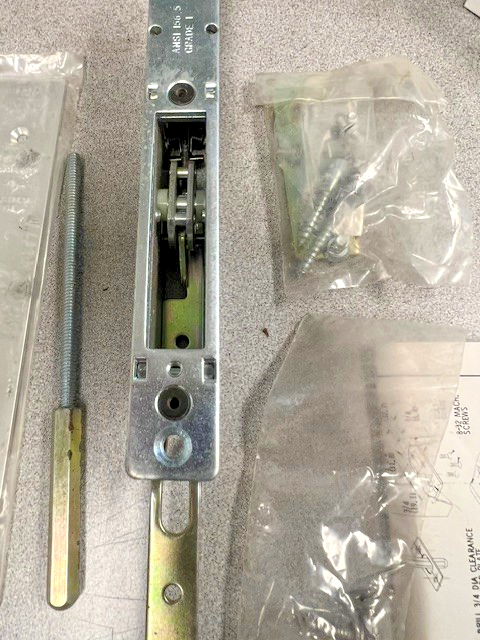

Basic lock mechanism boxed with actuator arm attached, rod/bolt assembly unattached. Stainless steel bolt guide,

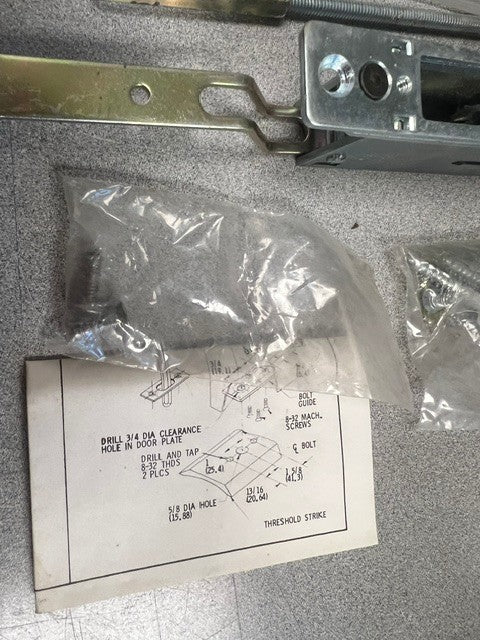

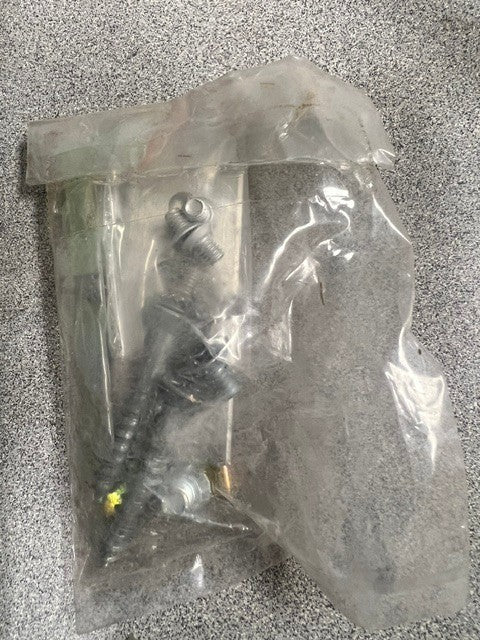

mounting screws, and installation instructions included.
mounting screws, and installation instructions included.
