YALE SECURITY AND YALE COMMERCIAL IS NOW RE-NAMED ACCENTRA BY ASSA ABLOY

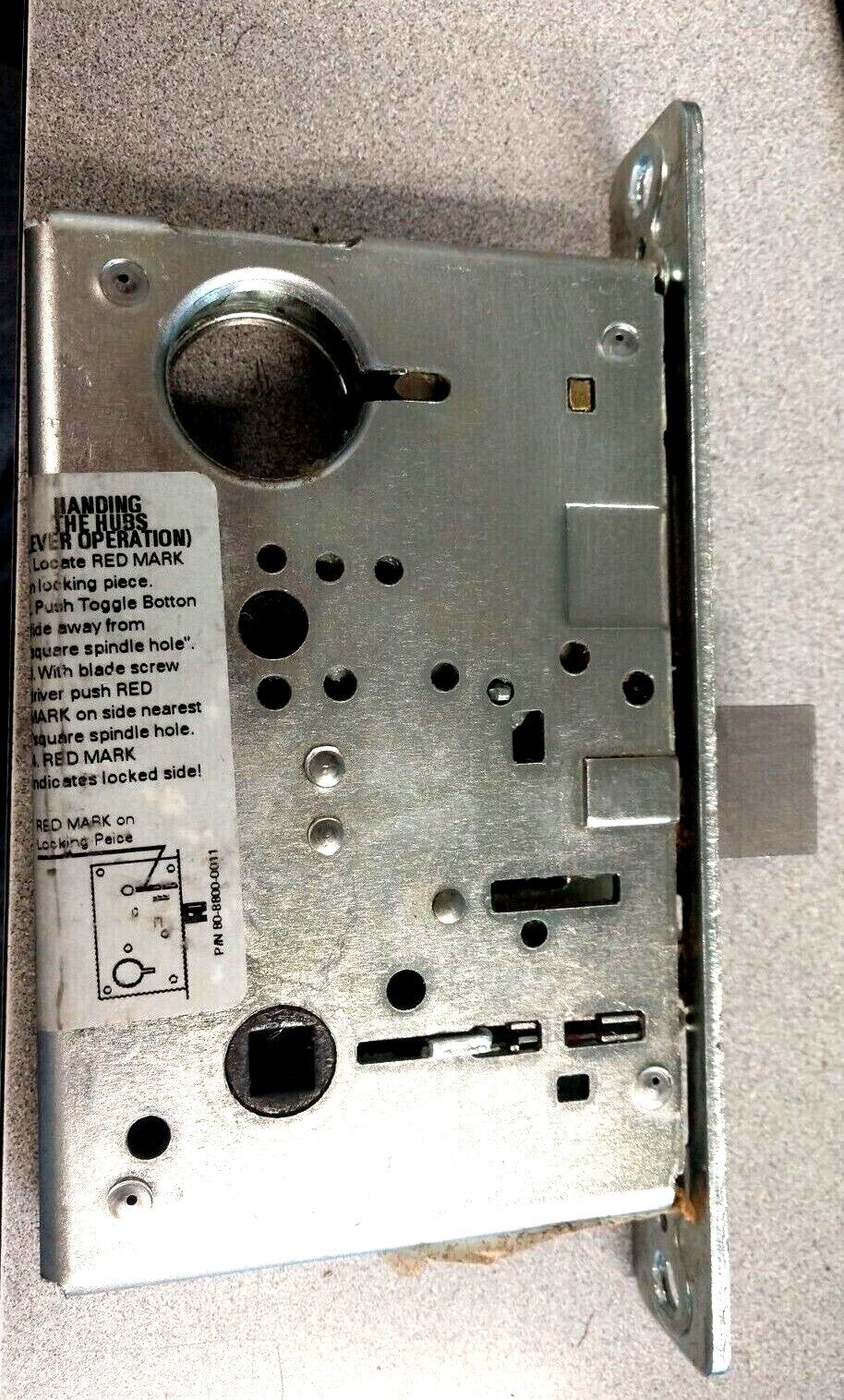

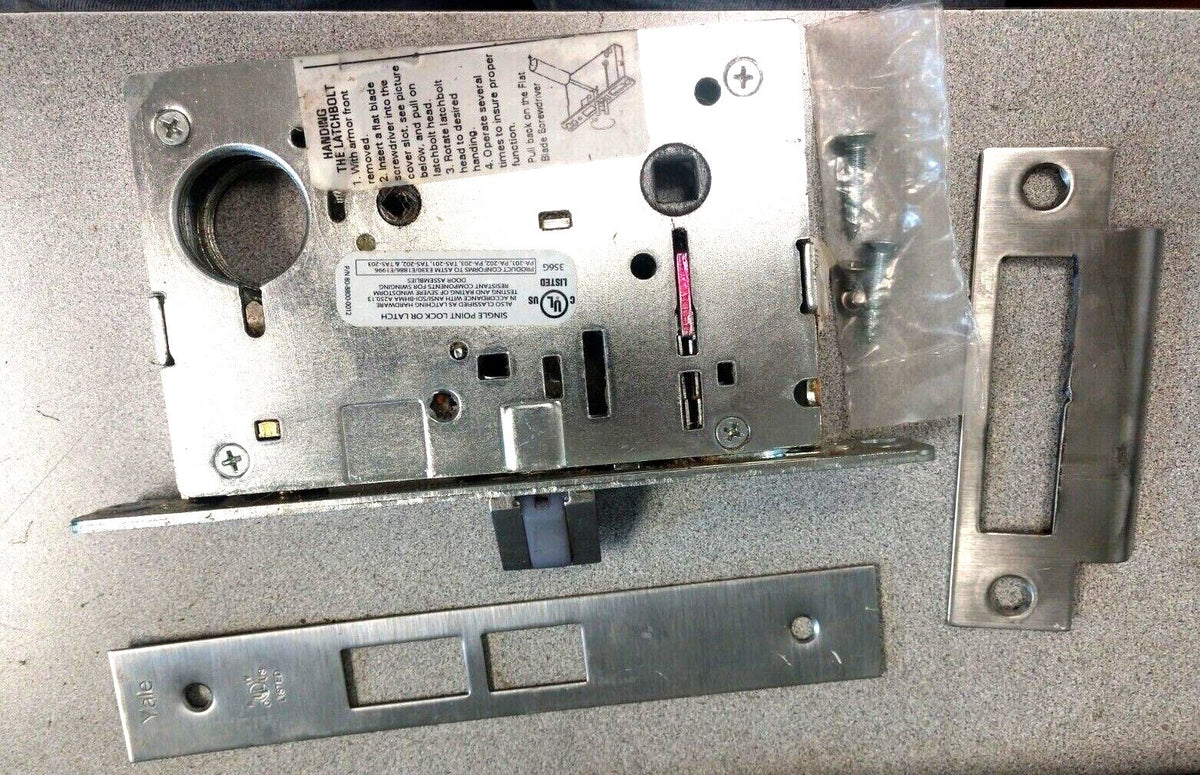

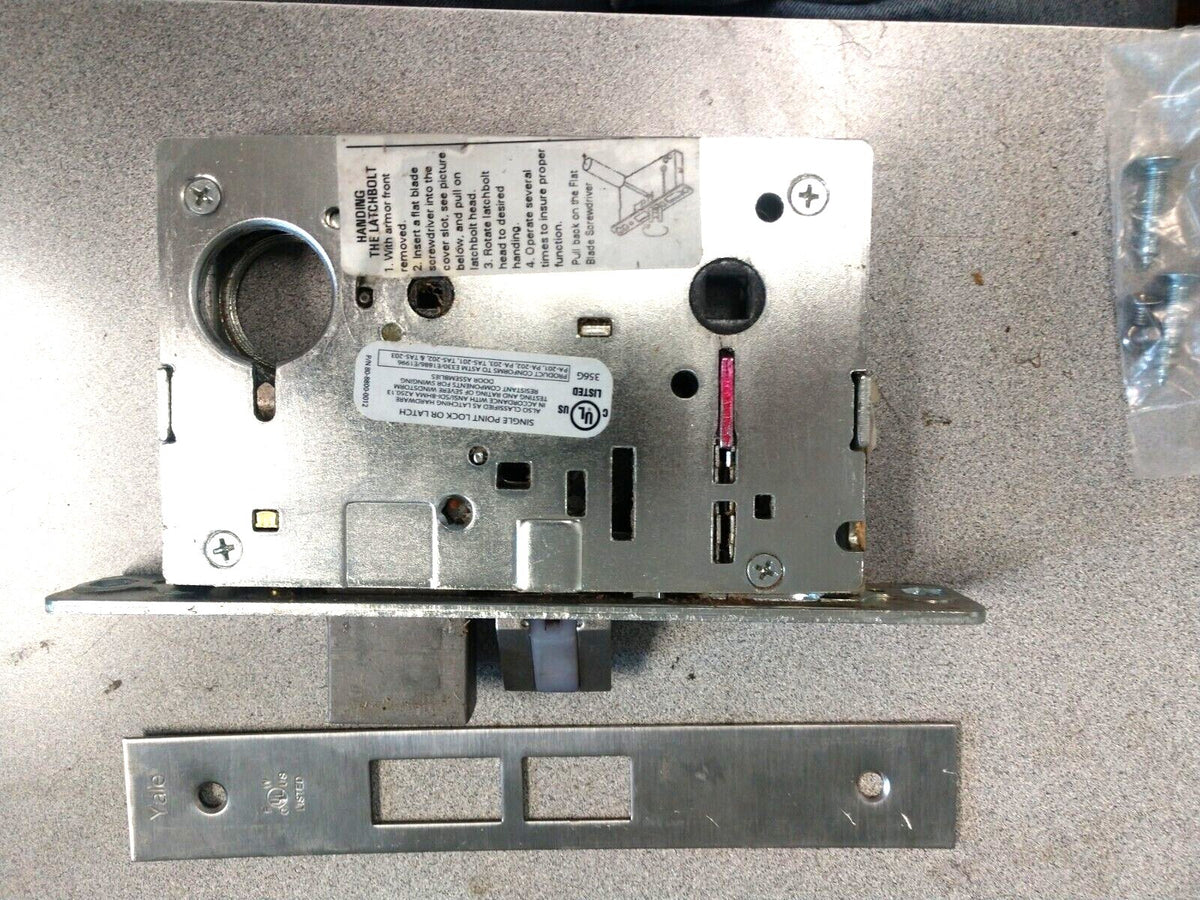

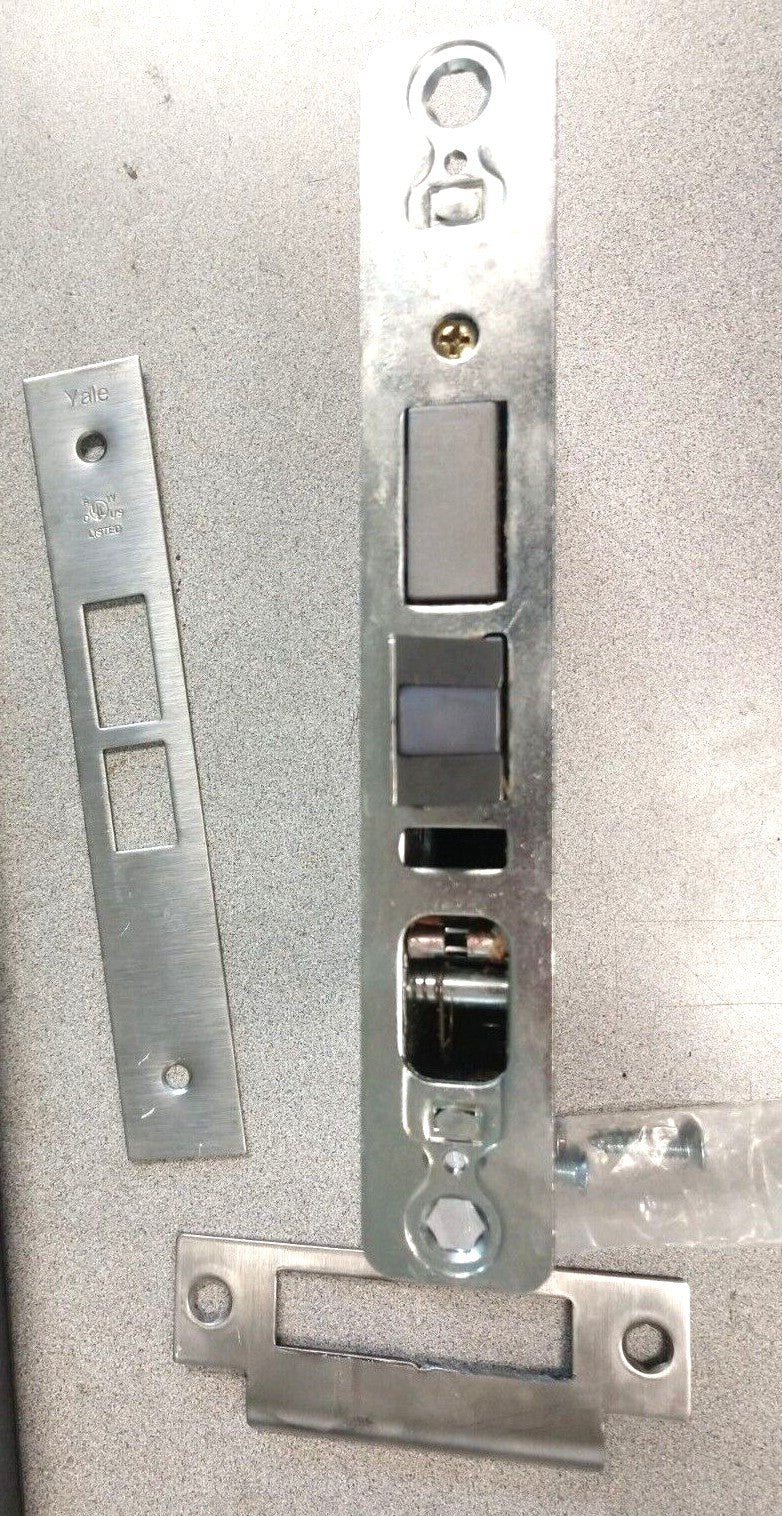

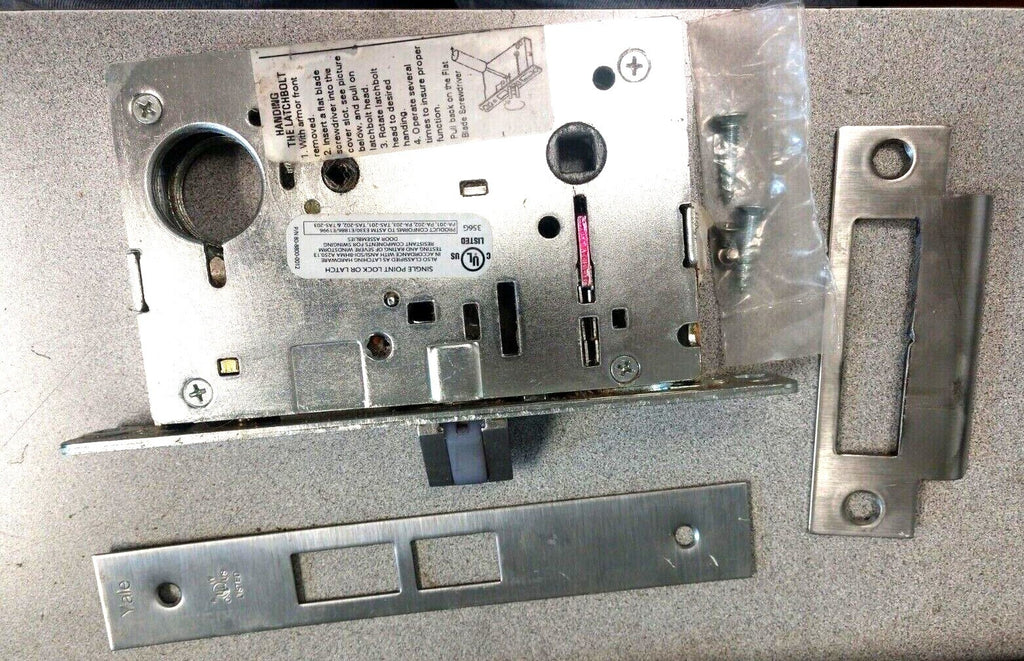

UP FOR SALE IS ONE (1) USED SELLER REFURBISHED YALE 8802FL LOCK BODY ONLY WITH STRIKE AND SCALP KIT

THIS BODY IS THE SAME AS THE YALE 8822 AND IT MAY BE LABELED AS SUCH. THERE IS NO DIFFERENCE IN THE BODY

PRIVACY FUNCTION

WITH FASTENERS

TESTED AND CLEANED

FIELD REVERSIBLE

TAKEN OUT OF SERVICE AND RELACED WITH ANOTHER TYPE OF LOCK

FOR USE WITH YALE LEVER TRIM WITH SPLIT SPINDLES

2017 MFG DATE

PRIVACY

Latchbolt retracted by knob/lever either side.

Deadbolt operated by  emergenc key outside and thumbturn inside.

When the deadbolt is projected, outside knob/lever is automatically locked.

Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.

Handing: Yale mortise locks are field reversible. These locks can be converted to accommodate the hand of the door. However, to reduce installation costs, it is recommended that the hand of the door be specified for each lockset ordered.

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm).

Lockcase: Wrought steel, zinc dichromated, 5-1/16" (129mm) x 4-1/8" (105mm) x 1" (25mm).

Armor Front:8" (203mm) x 1-1/4" (32mm)

Latchbolt: 3/4" throw, stainless steel two-piece anti-friction camming action.

Deadbolt: 1" throw, stainless steel with two enclosed hardenedsteel roller armor pins.

Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength.

Strike: Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Warranty: Mechanical mortise locks (10) year warranty
