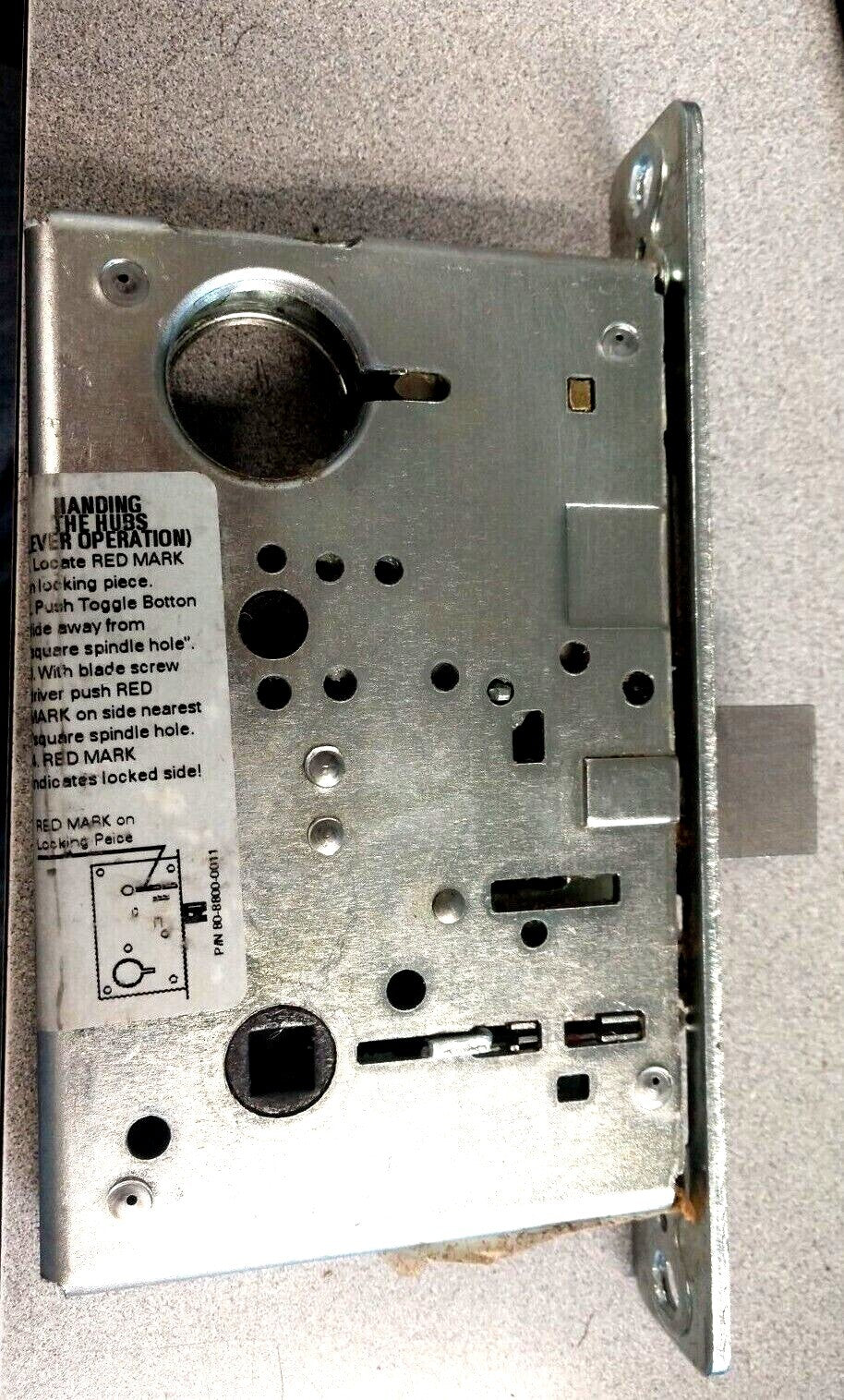

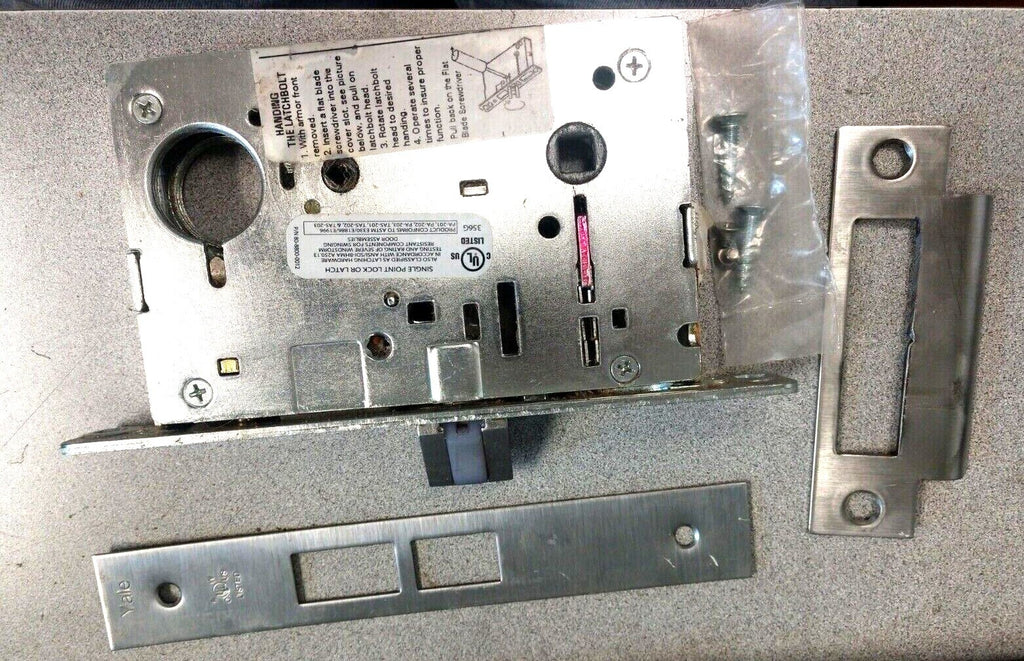

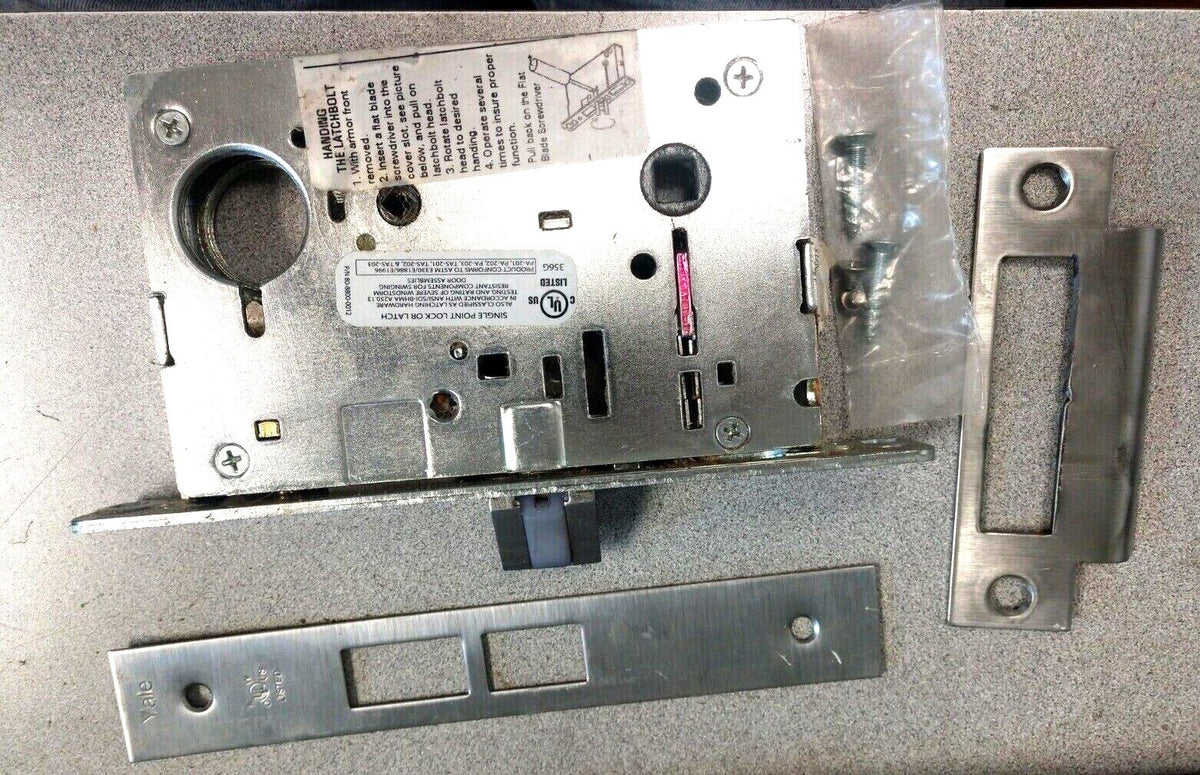

YALE MOR 8811-2 FL MORTISE CLASSROOM US26D DOUBLE CYLINDER REFURBISHED L/CYL

TESTED AND CLEANED

FIELD REVERSIBLE (see handing chart)

TAKEN OUT OF SERVICE AND RELACED WITH ANOTHER TYPE OF LOCK

WILL BE SHIPPED OUT OF THE ORIGINAL BOX BUT PACKED WELL

NOTE: SOME RUB MARKS ON STRIKE MIGHT EXIST AND SOME VERY MINUTE PAINT MIGHT VISIBLE BUT CAN BE TAKEN OFF EASILY WITH A FINGERNAIL

Supplied with two Yale 2153 keyed alike cylinders with spring collars

2017 MFG DATE

Dormitory or Exit lock - ANSI F13

Latch bolt retracted by knob/lever either side unless outside trim is locked by key

Deadbolt operated by key  by either side

Key retraction of deadbolt unlocks outside trim

When the deadbolt is projected, outside knob/lever is automatically locked.

Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.

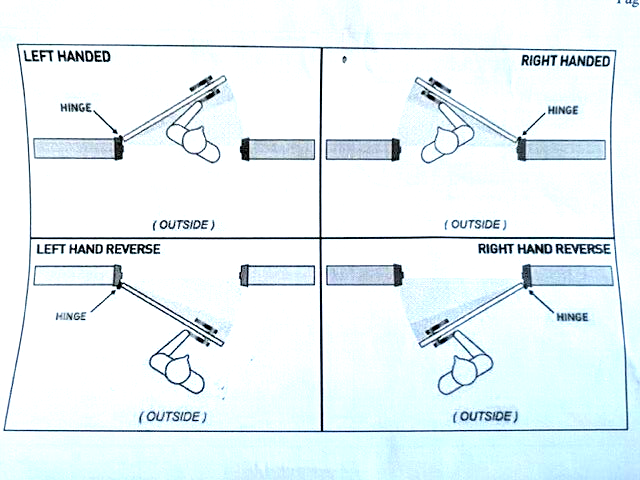

Handing: Yale mortise locks are field reversible. These locks can be converted to accommodate the hand of the door. However, to reduce installation costs, it is recommended that the hand of the door be specified for each lockset ordered.

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm).

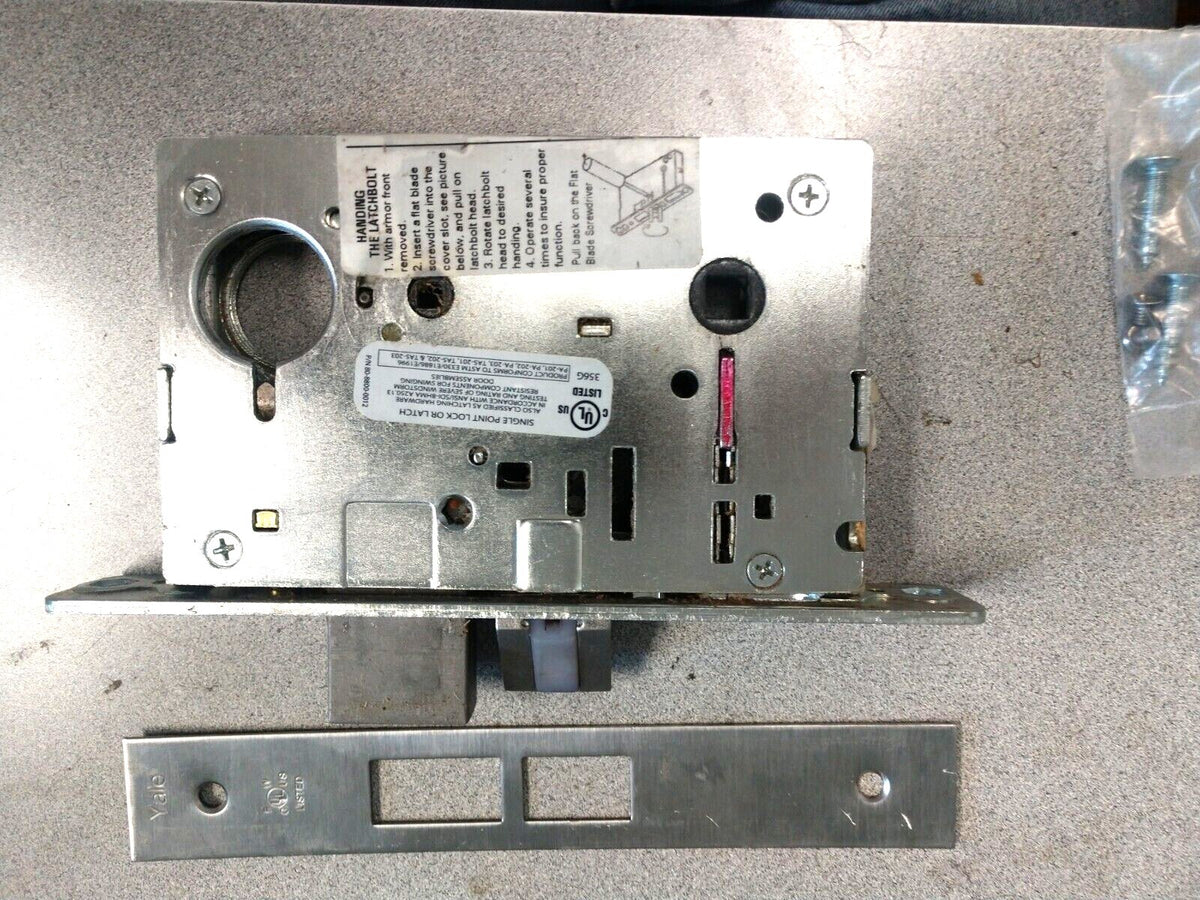

Lock case: Wrought steel, zinc dichromated, 5-1/16" (129mm) x 4-1/8" (105mm) x 1" (25mm).

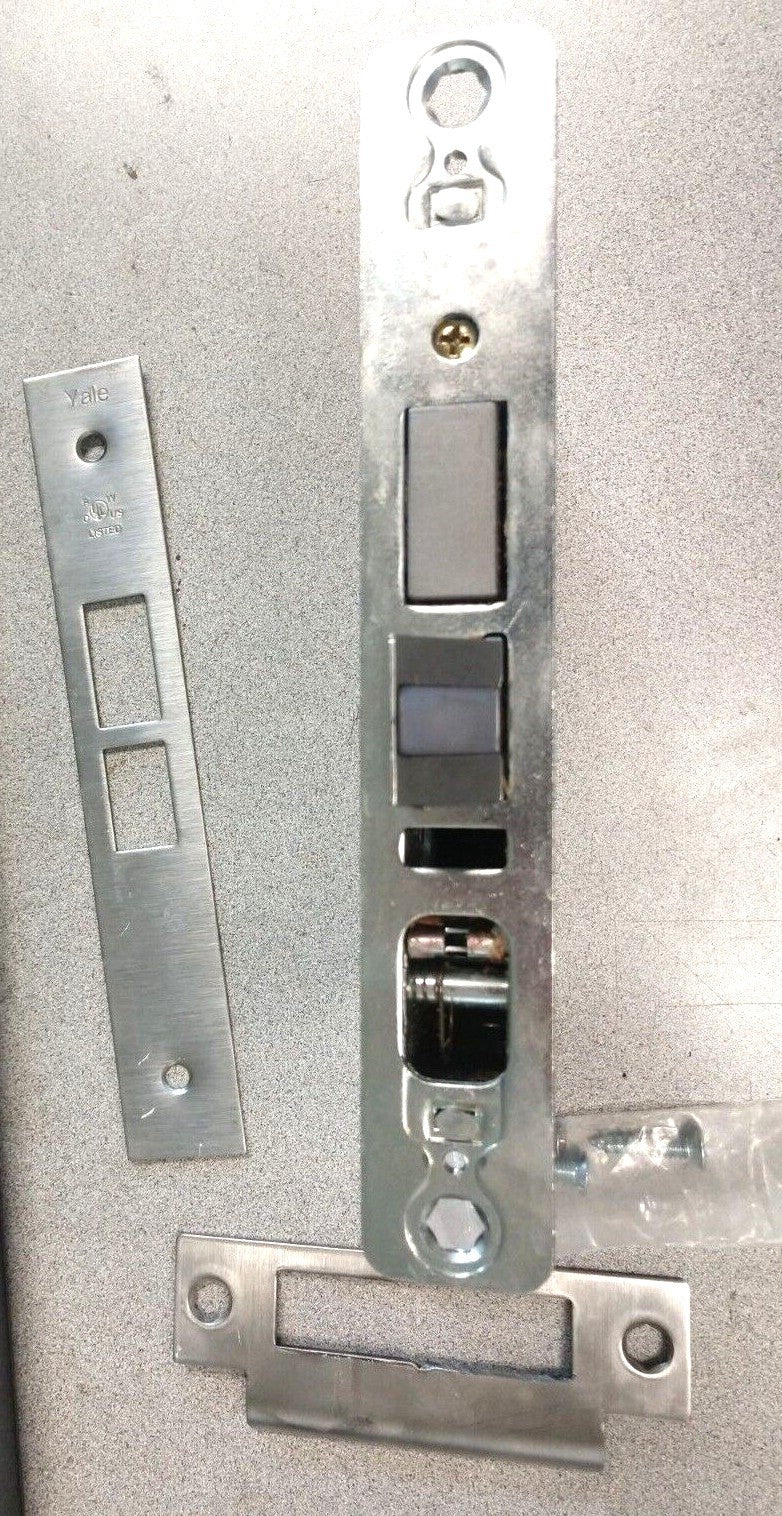

Armor Front:8" (203mm) x 1-1/4" (32mm)

Latch bolt: 3/4" throw, stainless steel two-piece anti-friction camming action.

Deadbolt: 1" throw, stainless steel with two enclosed hardened steel roller armor pins.

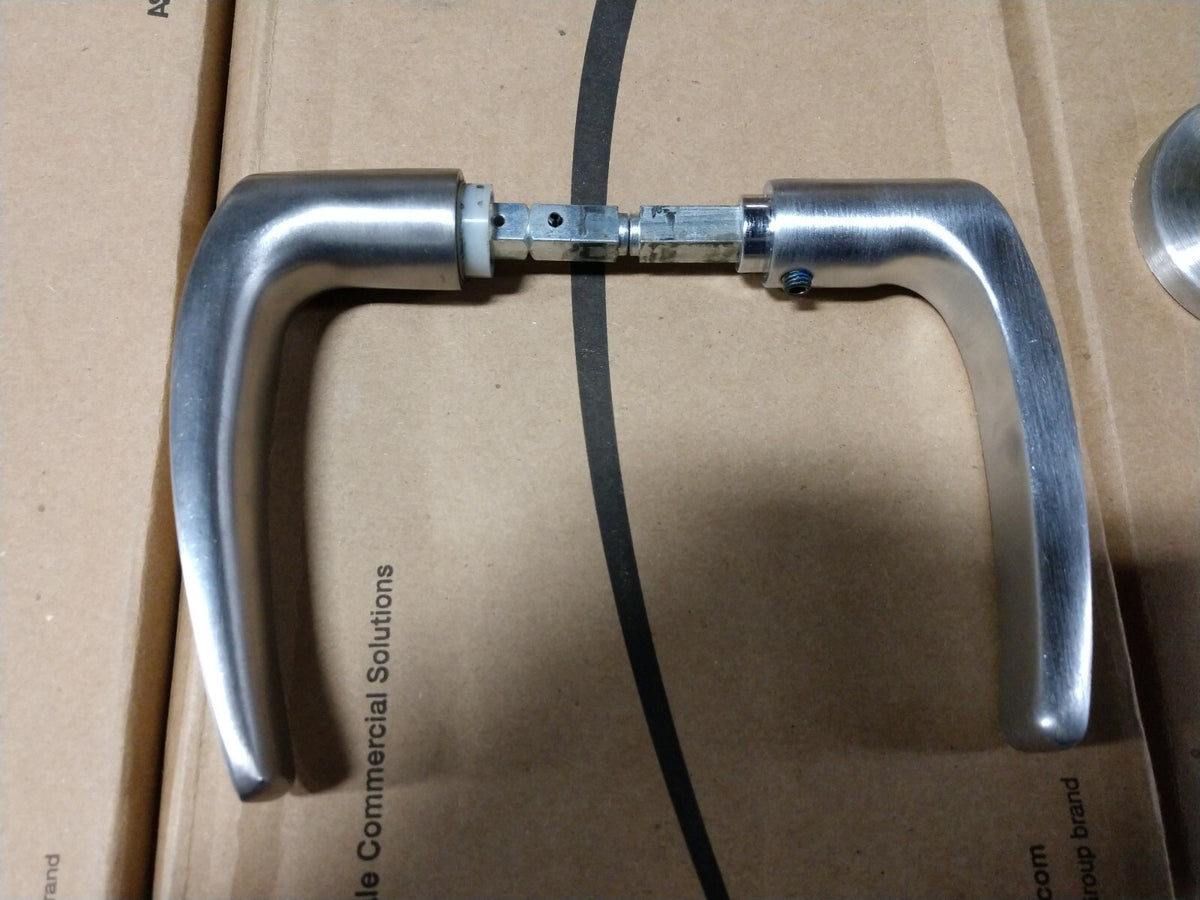

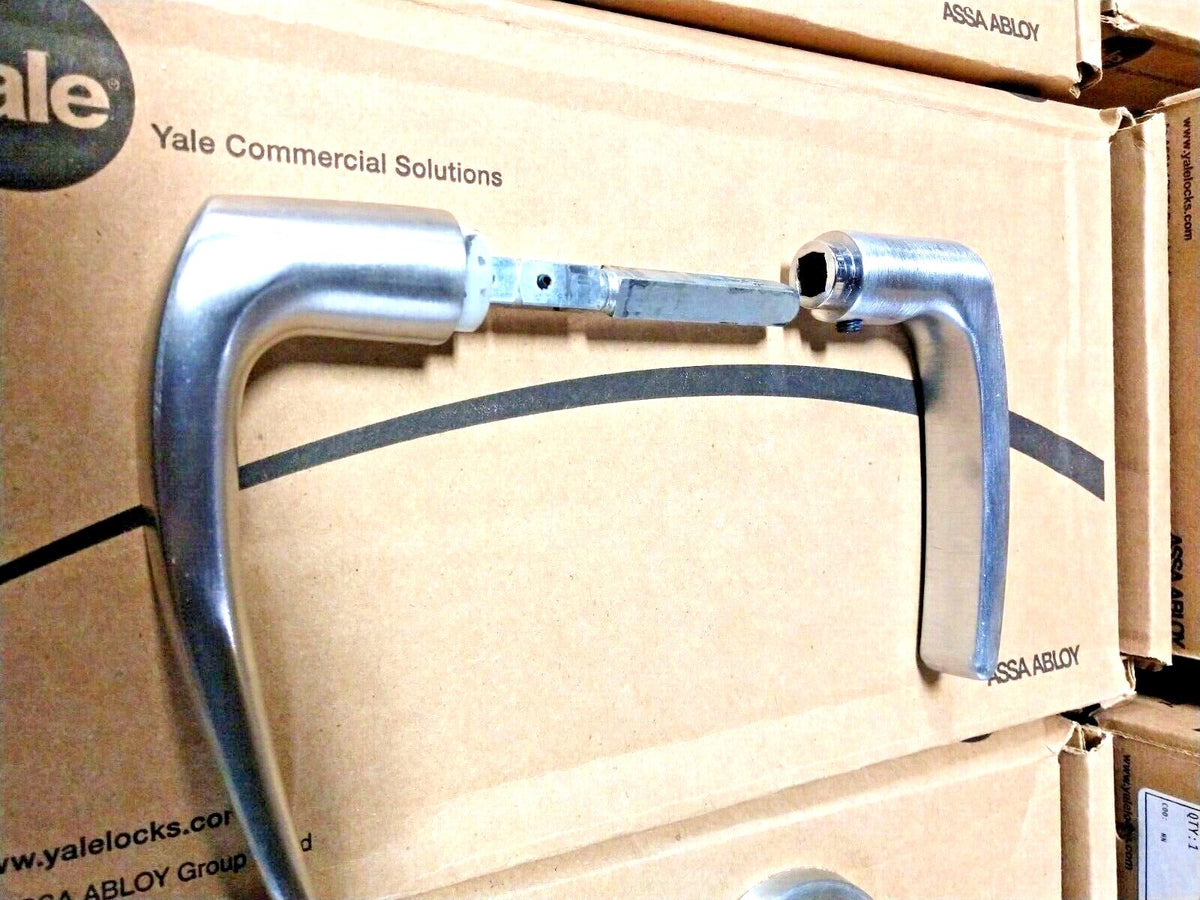

Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength.

Strike:  stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

WARRENTY TILL 1/27
