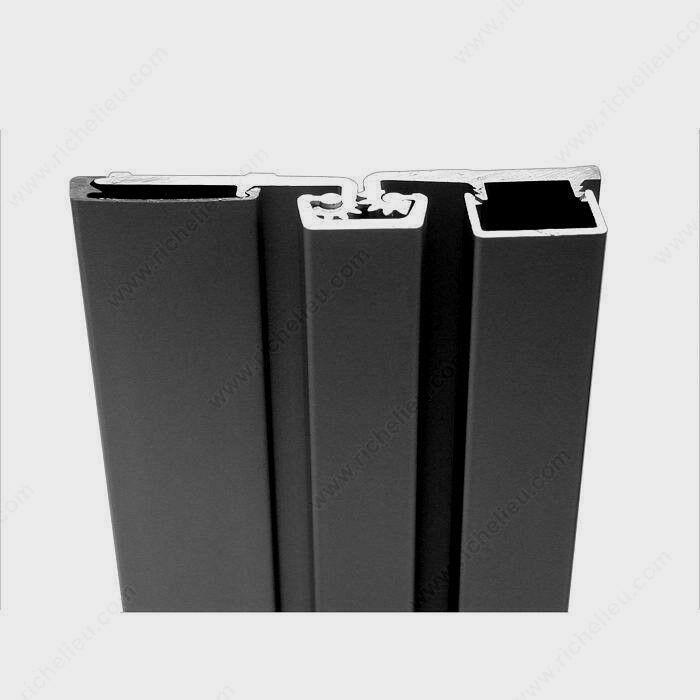

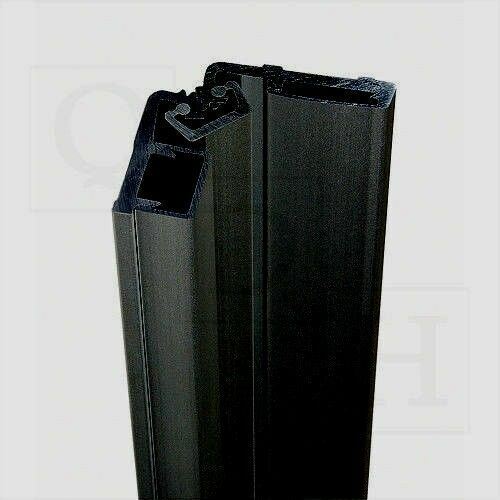

UAC HD 780-157-83 Heavy Duty Full Surface Continuous Hinge EQUAL TO ROTON HAGER 780-157HD- 83 DKB  (DURONODIC STOREFRONT DARK BRONZE)

UP FOR SALE IS 1 EACH UAC MODEL HD780-157-83-DUR  FOR  7 FOOT ENTRY OF STEEL NON FIRERATED

ANODIZED  FINISH : DKB DURONODIC STOREFRONT DARK BRONZE


UAC HD 780-157 83 " DKB  DURONODIC  Full Surface Roton Continuous Hinge - Narrow face frame

  • Heavy duty for high frequency doors or heavy, medium frequency doors.
  • Material: Aluminum Finish :DKB  DURONODIC STOREFRONT DARK BRONZE
  • Clearance: 1/32" (1 mm) minimum recommended for hinge side plus standard lockside clearance
  • Fasteners: screws and sex bolts
  • Door Reinforcement: None required
  • Frame Reinforcement: None required to 200 lbs, heavier weight use 16 gauge channel



        •Can be used for surface applications where frame face dimension is narrow - 1 inch or more.

  • •1/16" (1.5 mm) inset
  • HEAVY DUTY PRECISION BEARINGS
  • Field Modifications - Roton hinges can be cut in the field, any product modifications may void all warranties. Should in-the-field modifications be required, cut only from the bottom of the hinge. Do not cut through bearings or screw holes.
  • Proper center-punching is extremely important with self-drilling screws. If center-punching is omitted or incorrectly done, the screw will “walk” in the same way as a drill bit, resulting in cocked screw heads and improperly closing hinge leaves.
                                 PROVEN DESIGN FIELD AND LAB TESTED TO MEET OR EXCEED CURRENT STANDARDS


    FINISH:DURONODIC STOREFRONT DARK BRONZE
