LOCKSMITH STANLEY QDC311F 698 AL DOOR CLOSER REPLACE NORTON 1601 1604BC YALE 51
$109.95
Skip to product information
YALE SECURITY AND YALE COMMERCIAL IS NOW RE-NAMED ACCENTRA BY ASSA ABLOY
WE STOCK ALL NORTON, YALE, ACCENTRA, CORBIN AND RIXSON DOOR CLOSER PARTS, ARMS & BRACKETS IN MOST FINISHES
LOCKSMITH STANLEY QDC311F 698 AL DOOR CLOSER REPLACE NORTON 1601 1604BC YALE 51
$109.95
UP FOR SALE IS ONE (1) NEW STANLEY QDC311F689 (ALUMINUM FINISH) DOOR CLOSER
MINT
SELLING ON THE INTERNET FOR $93.00 LIST $186.00
LIFETIME WARRANTY

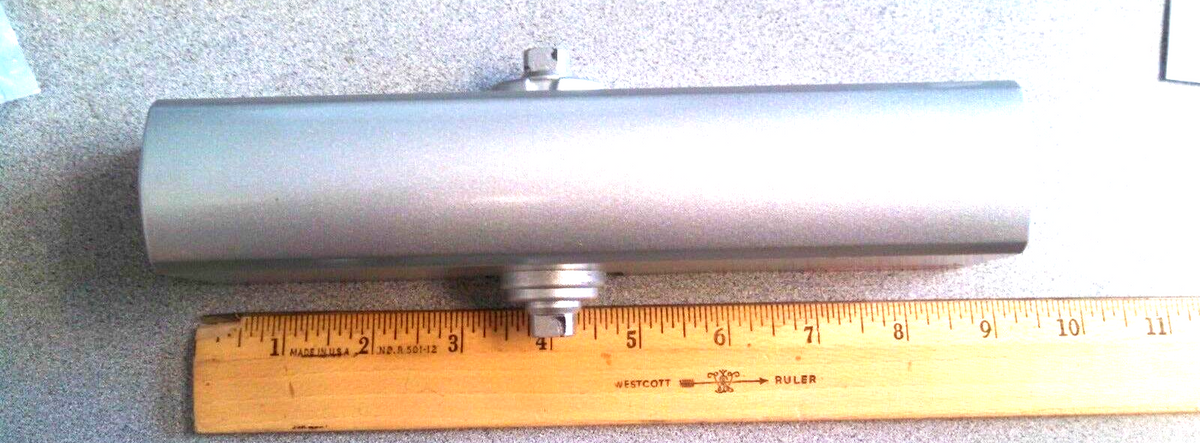

REPLACES ALL 9.125" CC NORTON AND YALE AND LOOK ALIKE DOOR CLOSERS USING THE NORTON YALE FOOTPRINT
SPECIFICALLY 1601, 51, 1604,1605 1606 , 54,55,56 WITH OR WITHOUT BACK CHECK
ADJUSTABLE SIZE 1-6
FULL PLASTIC COVER
ADJUSTABLE BACKCHECK
ADA COMPLIANT
STANDARD SCREW PACK
PA BRACKET
SEXNUTS

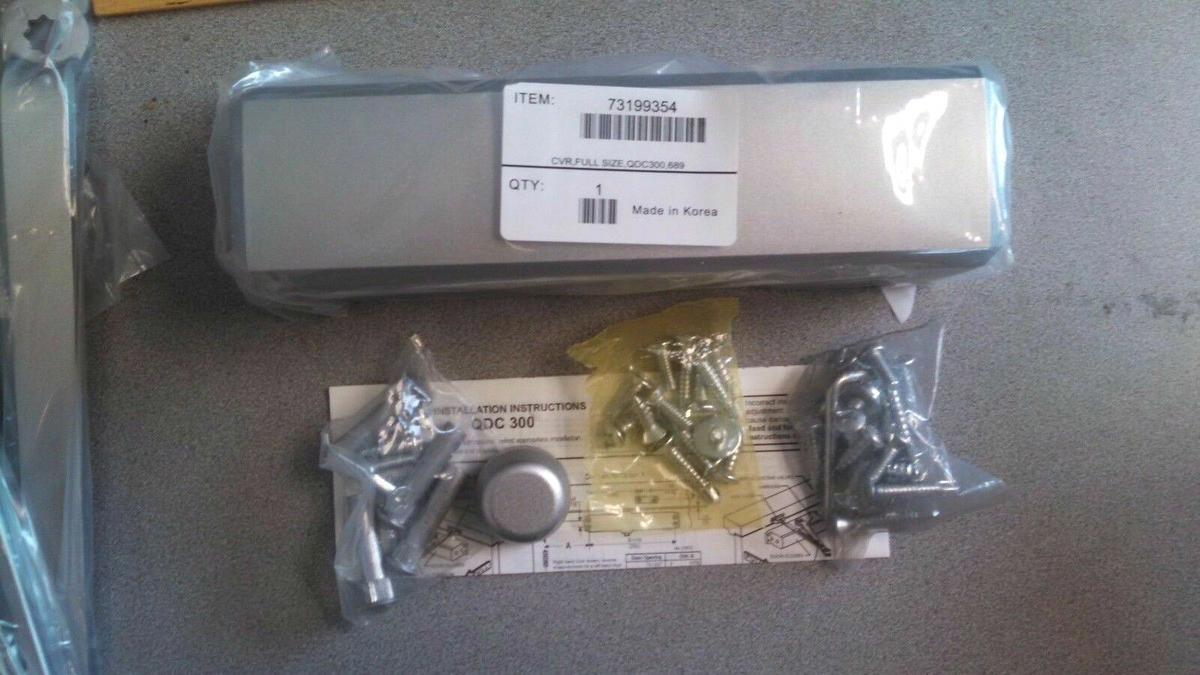

TRI- PACKED FOR REGULAR ARM, TOP JAMB AS WELL AS PA MOUNTING
TWO ADJUSTMENTS FOR LATCH AND SWEEP SPEEDS
FACTORY TESTED TO MEET OR EXCEED ANS1 A 156.4 GRADE 1 SPECIFICATIONS
WILL SHIP USPS OR UPS (OUR CHOICE) INSURED
EQUAL OR EXCEEDS THE FOLLOWING:
YALE 54
NORTON 1601
SCH F8915
ARROW 900
HAGER 5300
FALCON SC60
PDQ 3100
CAL ROYAL 300
DORMA 7400
SARGENT 1130
Product Description

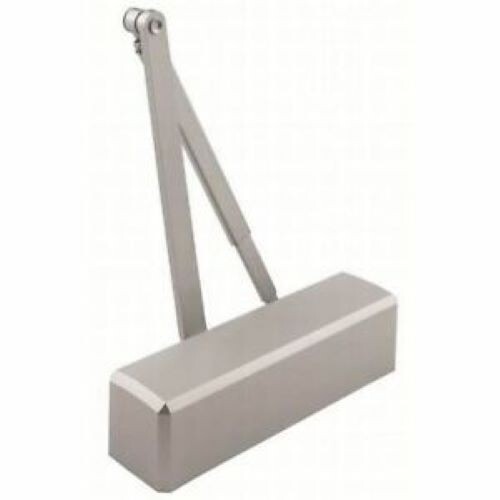

Stanley QDC311F-689 Aluminum Tri-Packed Arm, Non-Hold Open Door Closer
•ANSI/BHMA A156.4 Series Grade 1
•ANSI A117.1 Accessibility Code
•UL/cUL listed(3-hours) for self-closing doors without hold-open
•UL10C Positive Pressure Rated
•UL10B Pressure Rated
•Tested to significantly exceed the performance requirements for Grade 1 certification.
•Fully adjustable from 1-6 allowing for maximum flexibility.
•Backcheck is standard in the same door closer body.
•All weather oil insures optimal operational performance in multiple climate conditions.
•Sized for interior doors to 4'6"; exterior doors to 4'0".
•Handing – All QDC300 series door closers are non-handed.
•Material – Cast aluminum.
•Cover – Full, architectural plastic cover aption available.

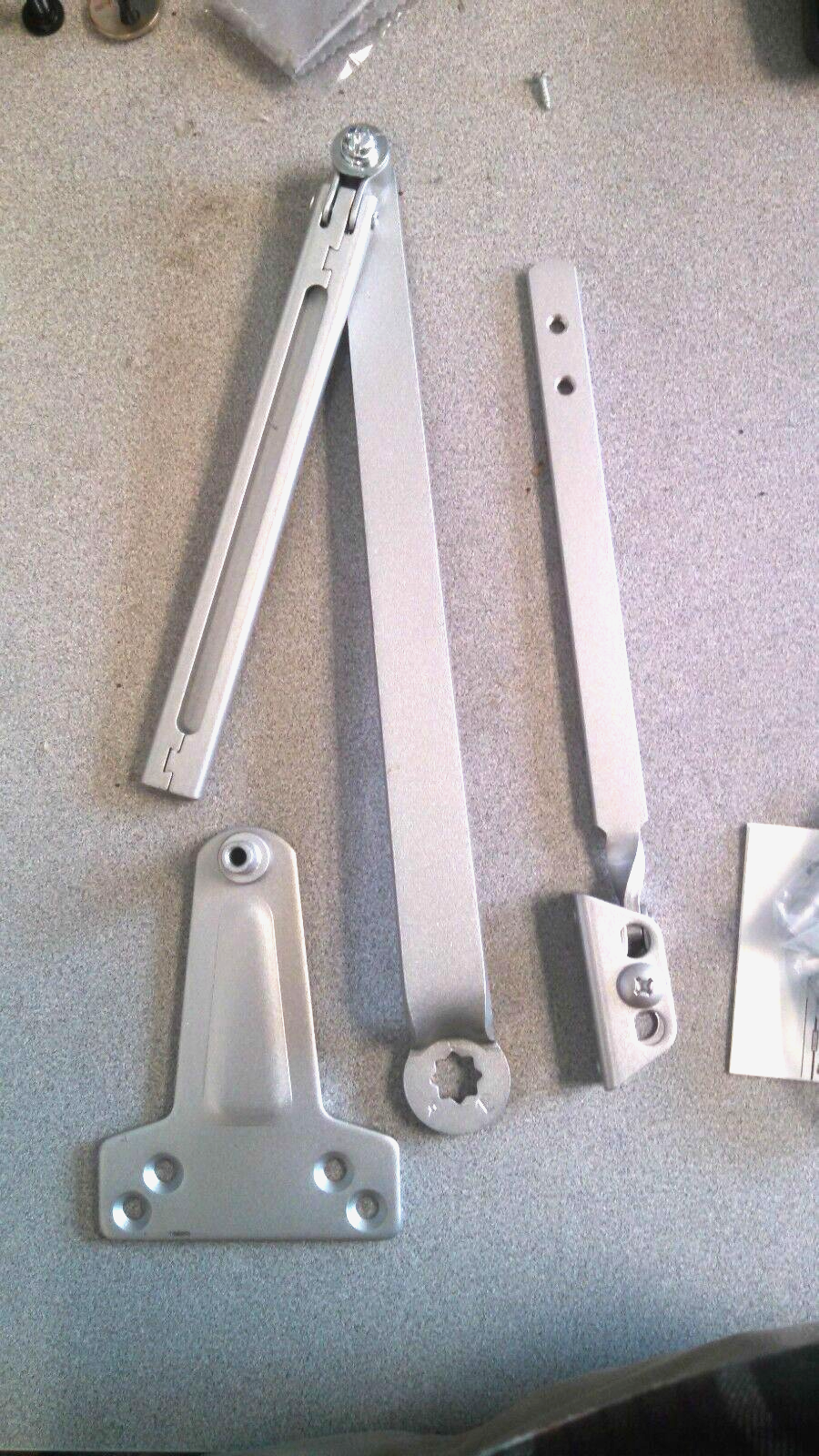

•Arms & Brackets – Tri-pack standard (Regular, Top, Jamb, Parallel configurations). Hold Open and Dead Stop arms also available.
•Arm Material – Heat treated carbon steel.
•Springs – High impact hand drawn steel wires.
•Pinions – Heat treated chrome molybdenum steel.
•Cylinder construction – Heat treated free-cutting carbon steel.
•Fasteners – Wood and machine screws standard. Sex nuts and bolts optional.
•Door Weights Size Applicable Door Weight 1 33 ~ 55 LBS (15 ~ 30 Kg) 2 56 ~ 99 LBS (30 ~ 45 Kg) 3 99 ~ 143 LBS (45 ~ 55 Kg) 4 143 ~ 187 LBS (65 ~ 85 Kg) 5 187 ~ 264 LBS (85 ~ 120 Kg) 6 264 ~ 330 LBS (120 ~ 150 Kg)
•ANSI/BHMA A156.4 Series Grade 1
•ANSI A117.1 Accessibility Code
•UL/cUL listed(3-hours) for self-closing doors without hold-open
•UL10C Positive Pressure Rated
•UL10B Pressure Rated
•Tested to significantly exceed the performance requirements for Grade 1 certification.
•Fully adjustable from 1-6 allowing for maximum flexibility.
•Backcheck is standard in the same door closer body.
•All weather oil insures optimal operational performance in multiple climate conditions.
•Sized for interior doors to 4'6"; exterior doors to 4'0".
•Handing – All QDC300 series door closers are non-handed.
•Material – Cast aluminum.
•Cover – Full, architectural plastic cover aption available.
•Arms & Brackets – Tri-pack standard (Regular, Top, Jamb, Parallel configurations). Hold Open and Dead Stop arms also available.
•Arm Material – Heat treated carbon steel.
•Springs – High impact hand drawn steel wires.
•Pinions – Heat treated chrome molybdenum steel.
•Cylinder construction – Heat treated free-cutting carbon steel.
•Fasteners – Wood and machine screws standard. Sex nuts and bolts optional.
•Door Weights Size Applicable Door Weight 1 33 ~ 55 LBS (15 ~ 30 Kg) 2 56 ~ 99 LBS (30 ~ 45 Kg) 3 99 ~ 143 LBS (45 ~ 55 Kg) 4 143 ~ 187 LBS (65 ~ 85 Kg) 5 187 ~ 264 LBS (85 ~ 120 Kg) 6 264 ~ 330 LBS (120 ~ 150 Kg)
