LOCKSMITH SMR AUR10 US26D 2 3/8" PASSAGE SET GRADE 2 HEAVY DUTY
LOCKSMITH SMR AUR10 US26D 2 3/8" PASSAGE SET GRADE 2 HEAVY DUTY

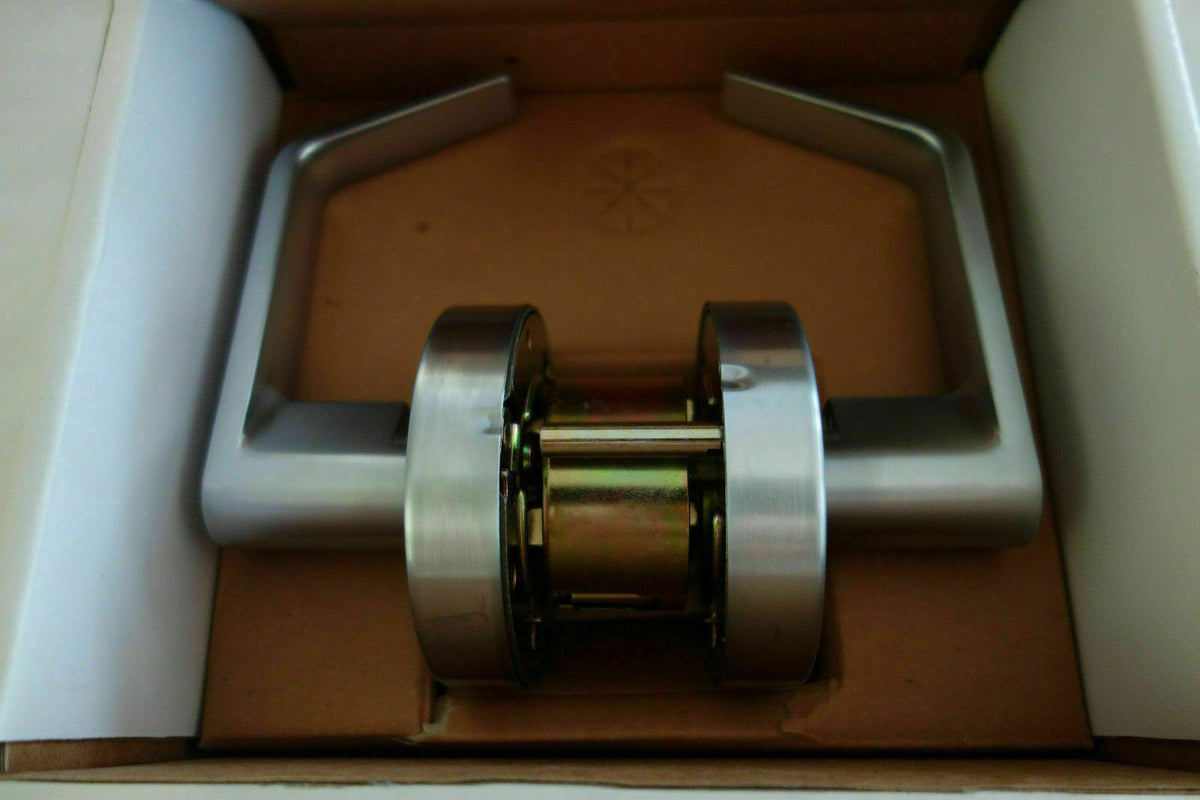

UP FOR SALE IS ONE (1) MINT SMR AUR 10 IN US26D PASSAGE LEVER SET
FUNCTION : PASSAGE
FINISH: US26D DULL CHROME BHMA 626
DESIGN: SAME AS YALE AUGUSTA OR SCHLAGE RHODES OR CORBIN NEWPORT
REMOVABLE THROUGHBOLT DESIGN FOR EASY RETROFIT OR NEW INSTALLATIONS
BACKSET 2 3/8"
STRIKE: 2 3/4" T STRIKE (ASA ANSI 4 7/8" AVAILABLE N/C) MUST MESSAGE ME AT CHECKOUT
WILL SHIP VIA UPS OR USPS (OUR CHOICE) INSURED
WARRANTY 5 YEARS
SAME AS
S PARKER 8100 SERIES
TACO DX-LS
GENERAL LOCK
Product Description
Grade 2 Contractor Quality® Heavy Duty Cylindrical Leverset
UL listed, ADA approved Grade 2 barrier-free leversets are ready for all ADA and other needs in passage, privacy, storeroom, classroom and dummy functions, in addition to entry models. The customer may provide the lock cylinder and key. Leversets meet ANSI A156.2 Series 4000 Grade standards and more than fulfill ADA requirements. The ANSI Series 4000 standard exceeds 400,000 operating cycles.
- Single step roses
- Cold rolled steel housing
- Reversible, non-handed
- Fits doors from 1 3/8" to 1 3/4" thick
- 2 3/4" backset UL listed latch bolt. Standard for all functions
- T STRIKE Standard for all leversets, all functions
- Finish: 26D DULL CHROME
- Each lever works independently of the other
- Dead locking latch on all keyed leversets
- Separate lever spring mechanisms help prevent sag
- 1/2" throw solid brass latch-bolt, UL listed, three hour fire rated
- Full 5" long handles on all levers in all functions
- Special keying available (Master and Grand Master)
- 2 3/8" BS available upon request
- Convertible posts
SINCE 1976 SMR MEANS QUALITY AND IS THE "ARCHITECT'S CHOICE"
