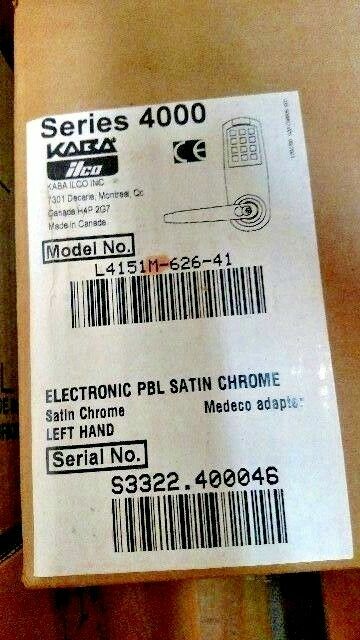

KABA SIMPLEX ILCO L4153M-626-41 NOS 4000 SERIES FOR MEDECO IC L/CORE CYLINDER

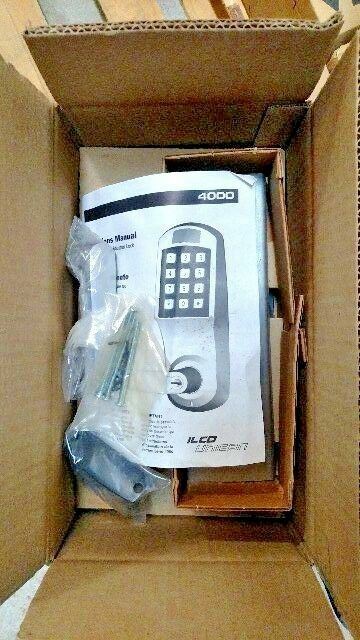

THE 4000 SERIES HAS BEEN DISCONTINUED. IF YOU ARE A SECURITY PROFESSIONAL SERVICING 4000 SERIES   INSTALLATIONS, THIS CAN BE YOUR SALVATION SINCE THESE ARE ALL NEW , MINT IN ORIGINAL PACKAGING JUST OPENED TO CHANGING  OUT BATTERY PACKS.

THESE  CAN BE USED TO REPLACE EXISTING LOCKS, EXPAND SYSTEMS OR FOR PARTS

 WE ARE LIQUIDATING OUR STOCK ON THESE.

THESE ARE BEING SOLD ON THE INTERNET FOR  624.00 OR MORE EACH WHEN AVAILABLE

THIS IS A LEFT HAND LOCK

Application

4000 Series locks quickly replace any traditional key operated door lock, providing access with a numerical keypad. Each user or group of users is assigned a 3 to 6 digit code that provides secure access to all rooms they are authorized to enter.  The 4000 is ideal for large office facilities, factories, labs, campuses, or institutions. ess Control at the touch of a button

• Number of users: 54 unique codes.
• Combination codes: 3 to 6 digits per code
• Programming: Using the lock keypad.
• Feedback: Dual sensory audible and visible indicators.
• Security levels: 1 master, 3 managers and 54 users, with 1 service code controlled by both managers and master.
• Tamper lockout: Timed after 4 invalid entry attempts; Programmable duration from 30 sec. to 15 min.
• Emergency access: Mechanical key override.
• Passage mode: Set by master or manager level.
• Unlock time: Adjustable from 1 to 20 seconds by master level.
• Buzzer volume: Adjustable off/soft/loud by master level.
• Description: Heavy duty electronic lockset, cylindrical or mortise, with clutch mechanism; activated by numeric combination code.
• Handing: Left or right factory handed, field reversible.
• Numeric keypad: Vandal resistant, 12-button, metal keys.

Standard finish: Satin Chrome (626)

Lock Specifications

Mechanical

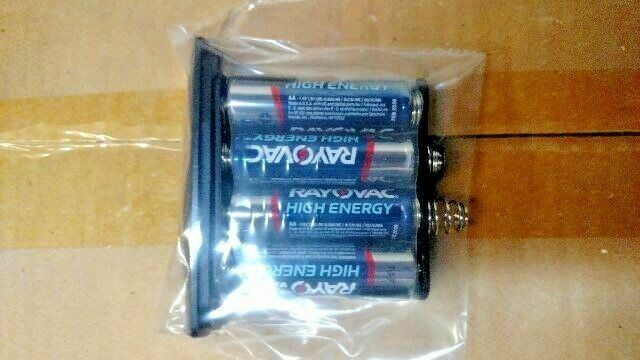

Batteries: 4 x AA (alkaline type only)
Battery life: Up to 80,000 openings or 4 years
Low battery: Visible indicator

Electrical
Door preparation: Both drawing and drilling templates provided
Lever type: Full return lever or, in the case of door moldings, a short return lever
Mechanical key override: In handle; removable core type; key in lever type (C type keyway)
Prepped for removable MEDECO LFIC CORE (CORE NOT INCLUDED
Door thickness: From 1 3⁄8" to 21⁄2" (35 mm to 64 mm) Backset: 23⁄4" to 23⁄8" (84 mm to 60 mm)

Installation
Accessibility standard: Americans with Disabilities Act (ADA)
Fire rating: Meets UL 10B and ULC S-104 on fire door rated up to and including 3 hours
Environmental Outside Housing: -31?F to 151?F (-35?C to 66?C)
Operating conditions: Inside Housing: 32?F to 120?F (0?C to 49?C)
Electronics: FCC part 15 class A and CE directive 89/336/EEC compliant.  Durability: Cylindrical lock meets requirements of ANSI 156.2 Grade 1 for 2 3⁄4" (84 mm) Backset application

WILL SHIP VIA UPS INSURED
