GRADE 2 LOCKSET SMR AUR80 US3 SCHLAGE C KEYWAY CLASSROOM GRADE 2 COMM DUTY
GRADE 2 LOCKSET SMR AUR80 US3 SCHLAGE C KEYWAY CLASSROOM GRADE 2 COMM DUTY
FUNCTION : CLASSROOM
KEYWAY SCHLAGE C (CAN BE PINNED INTO A SCHLAGE SYSTEM. SAME DEPTHS AND SPACING)
FINISH: US3 POLISHED BRASS BHMA 605
DESIGN: SAME AS YALE AUGUSTA OR SCHLAGE RHODES OR CORBIN NEWPORT
THROUGHBOLT DESIGN FOR EXTRA STRENGTH
BACKSET UL 2 3/4"
STRIKE : 2 3/4" T STRIKE
WILL SHIP VIA UPS OR USPS (OUR CHOICE) INSURED
WARRANTY 5 YEARS
SAME OR SIMILAR TO
S PARKER
TACO
GENERAL LOCK
Legend Grade 2
CAL ROYAL (ROSE DESIGN SLIGHTLY DIFFERENT TO CAL ROYAL)
Product Description
Grade 2 Contractor Grade Heavy Duty Cylindrical Leverset
UL listed, ADA approved Grade 2 barrier-free leversets are ready for all ADA and other needs in passage, privacy, storeroom, classroom and dummy functions, in addition to entry models. The customer may provide the lock cylinder and key. Leversets meet ANSI A156.2 Series 4000 Grade standards and more than fulfill ADA requirements. The ANSI Series 4000 standard exceeds 400,000 operating cycles.
- Single step roses
- Cold rolled steel housing
- Reversible, non-handed
- Fits doors from 1 3/8" to 1 3/4" thick
- 2 3/4" backset UL listed latch bolt. Standard for all functions
- T STRIKE Standard for all leversets, all functions
- Solid brass SC-1 ILCO #1145 keyway, keyed to 5 pins
- Finish US3 POLISHED BRASS
- Special keying available (Master and Grand Master)
- Each lever works independently of the other
- Dead locking latch on all keyed leversets

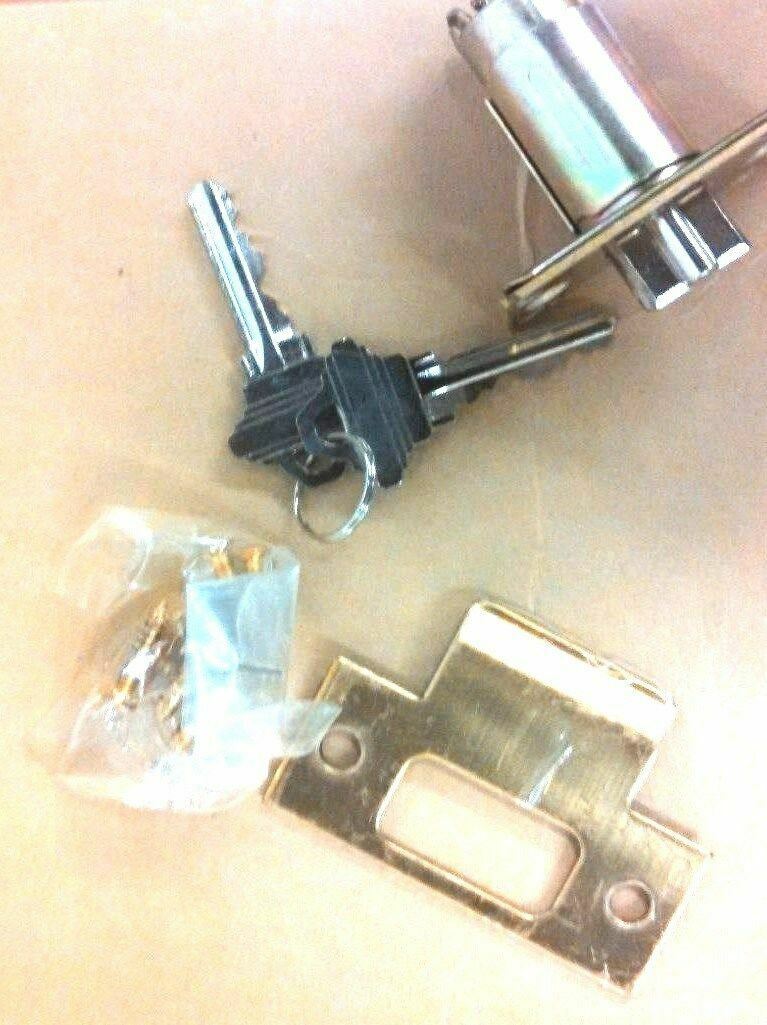

- 2 nickel silver keys
- Separate lever spring mechanisms help prevent sag
- 1/2" throw solid brass latch-bolt, UL listed, three hour fire rated
- Full 5" long handles on all levers in all functions
- Special keying available (Master and Grand Master)
- 2 3/8" BS available upon request
- Accepts Lori 1539/1590; ILCO
THIS LOCK IS EQUAL TO OR THE SAME AS S.PARKER, TACO, USCAN AND MANY OTHER GRADE TWO LEVER SETS.
