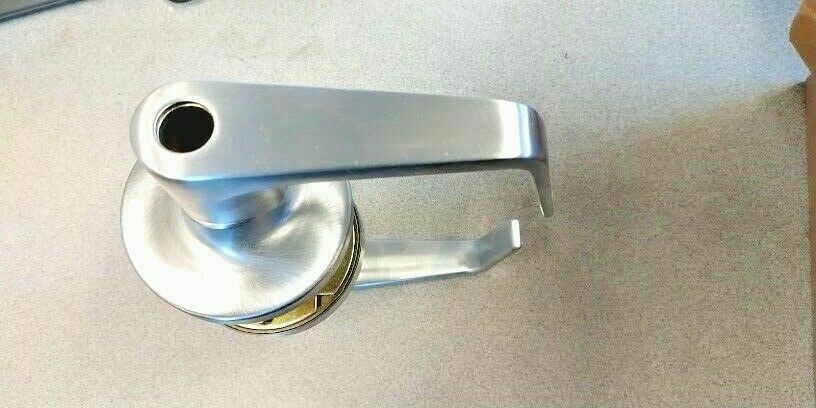

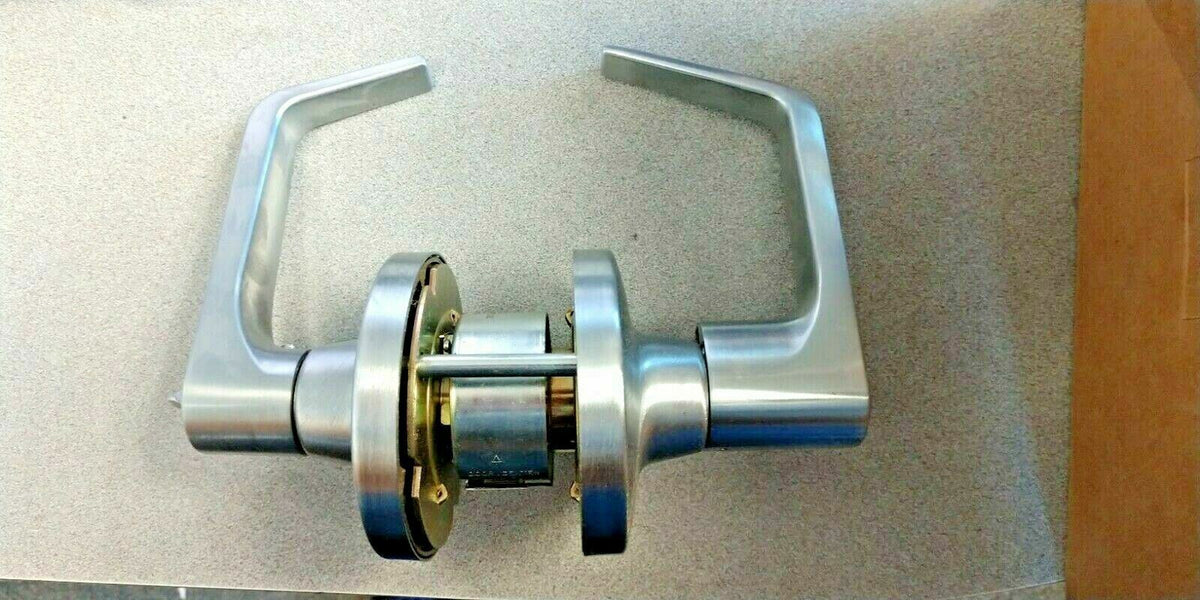

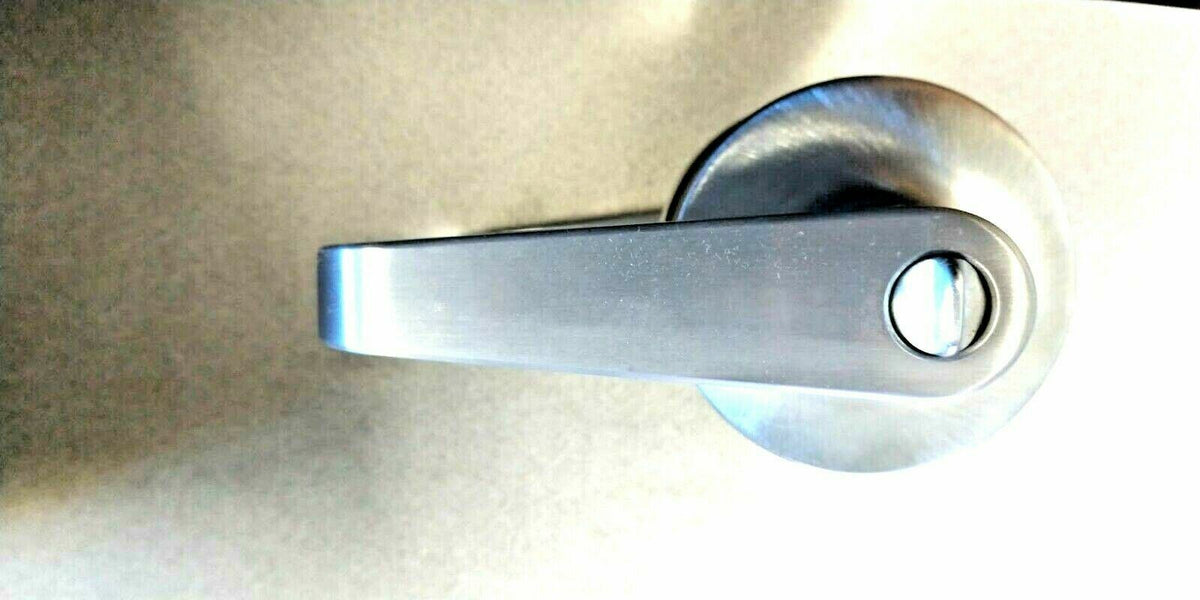

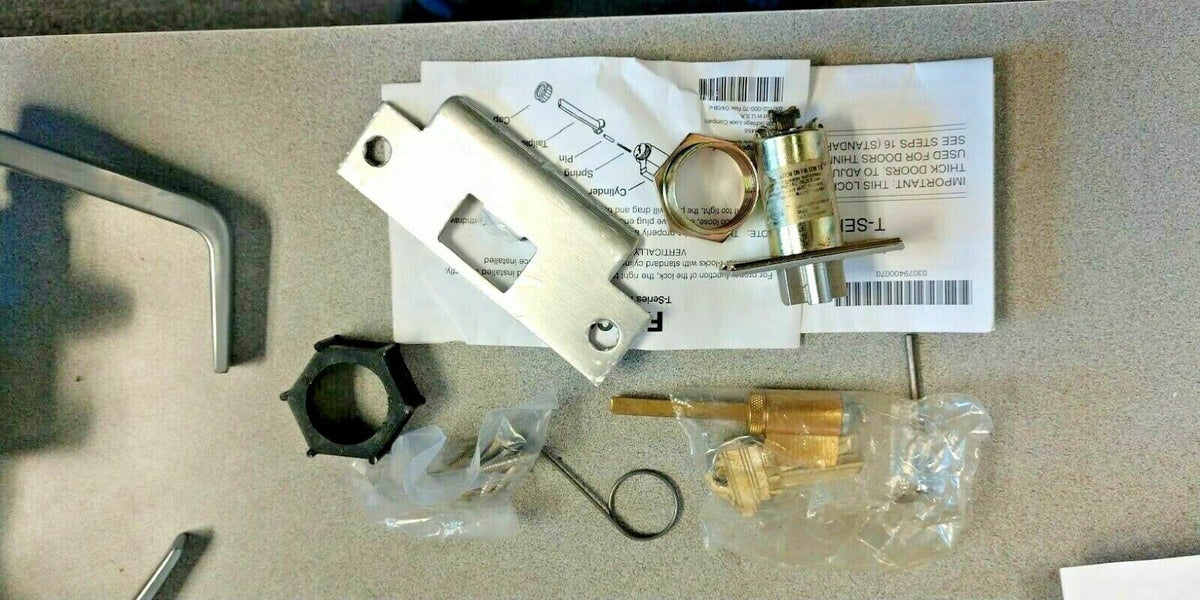

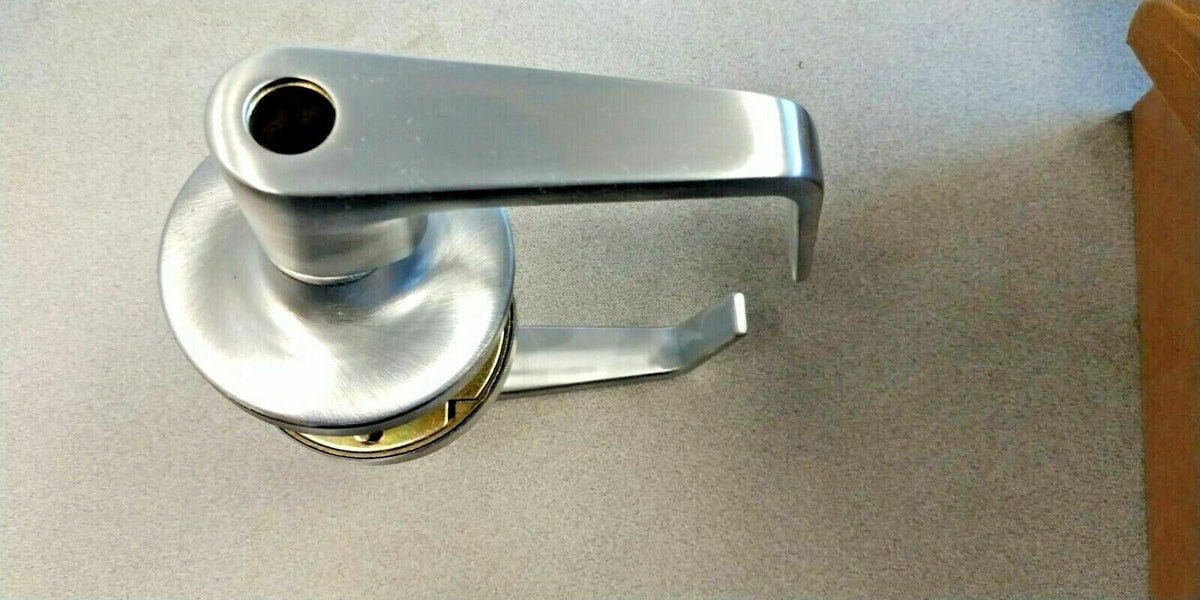

FALCON T511P6D DAN "C" KEYWAY GRADE 1 ENTRY LOCKSET
FALCON T511P6D DAN "C" KEYWAY GRADE 1 ENTRY LOCKSET
Falcon T511 Entry/Office Lock - ANSI F109
Turn/push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Push button locking. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.
Lever Style: Dane (D)
Finishes: 626 - Satin Chrome
ANSI/BHMA: Meets ANSI/BHMA A156.2,Series 4000,Grade 1.Door Thickness: 1-3/4" to 2-1/8" standard. Thin door adapter kit (A30775-000-00) vailable for doors thinner than 1-3/4". Thicker door locks also vailable, consult factory.
Backset: 2-3/4" standard
Handing: Locks are non-handed.
Cylinders: Drilled with Pinning in 6 chambers Cylinder assemblies removable to rekey.
Keyway SCHLAGE C 6 PIN keyway
Latches: 1/2" bolt projection, UL listed with latch faceplates 2-1/4" x 1-1/8" with square corners
Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115. 2 door frame preparation standard.
UL:3 hour A label.
