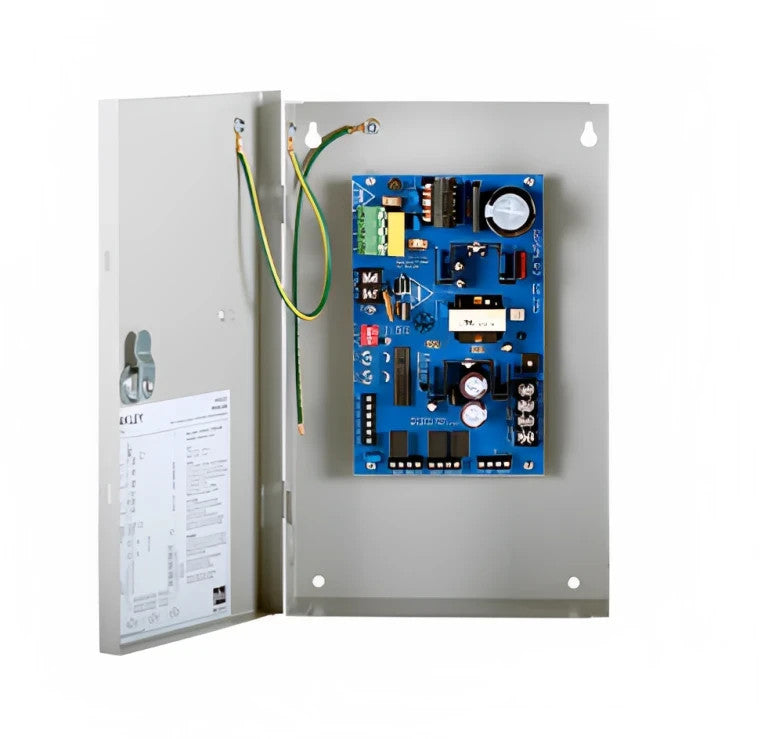

BEST PRESCISION RPS MLR2 MLR KIT NO BATTERY STORAGE

PHI Precicion RPSMLR2 Power Supply, MLR Kit, Small encloser, No Battery Storage

Power Supplies
The PRECISION RPSMLR2 Series is the recommended power source for PRECISION Motorized Latch Retraction (MLR) exit devices. The RPSMLR2 Series provides a code compliant source of filtered and regulated 24 Volt DC power. The RPSMLR2 Series is available in two enclosure sizes and they can each power up to (2) MLR exit devices.

Specifications
Certifications: UL 294 ULC S-319

Input Power: 120 VAC

Input: Fire alarm termination

Output Power
• 2 filtered & regulated 24 Volts DC outputs @ 2 Amps
• Holding current 200mA
• 1 filtered & regulated 24 Volts DC auxiliary output @ 0.8 Amps

Output
2 normal open relay outputs
Outputs can be wired for 2 different modes:
• 1 second delay prior to relay output
• Positive confirmation of latch retraction prior to signaling the operator when used in conjunction with MLR exit device sensor wires

Visual Indicators
• AC power, green LED – Indicates presence of AC power
• Triggered input, 2 red LEDs – Indicates input activation
• Fire alarm interface, green LED – Indicates fire alarm activation
• Battery status, red LED – Indicates low battery during AC power failure

Enclosure Dimensions
• RPSMLR2: 12.5”x7.5”x3.25”

Security: Keyed enclosure

Model: PHI Precision RPSMLR2

LOC: GLF F 3RD RW
