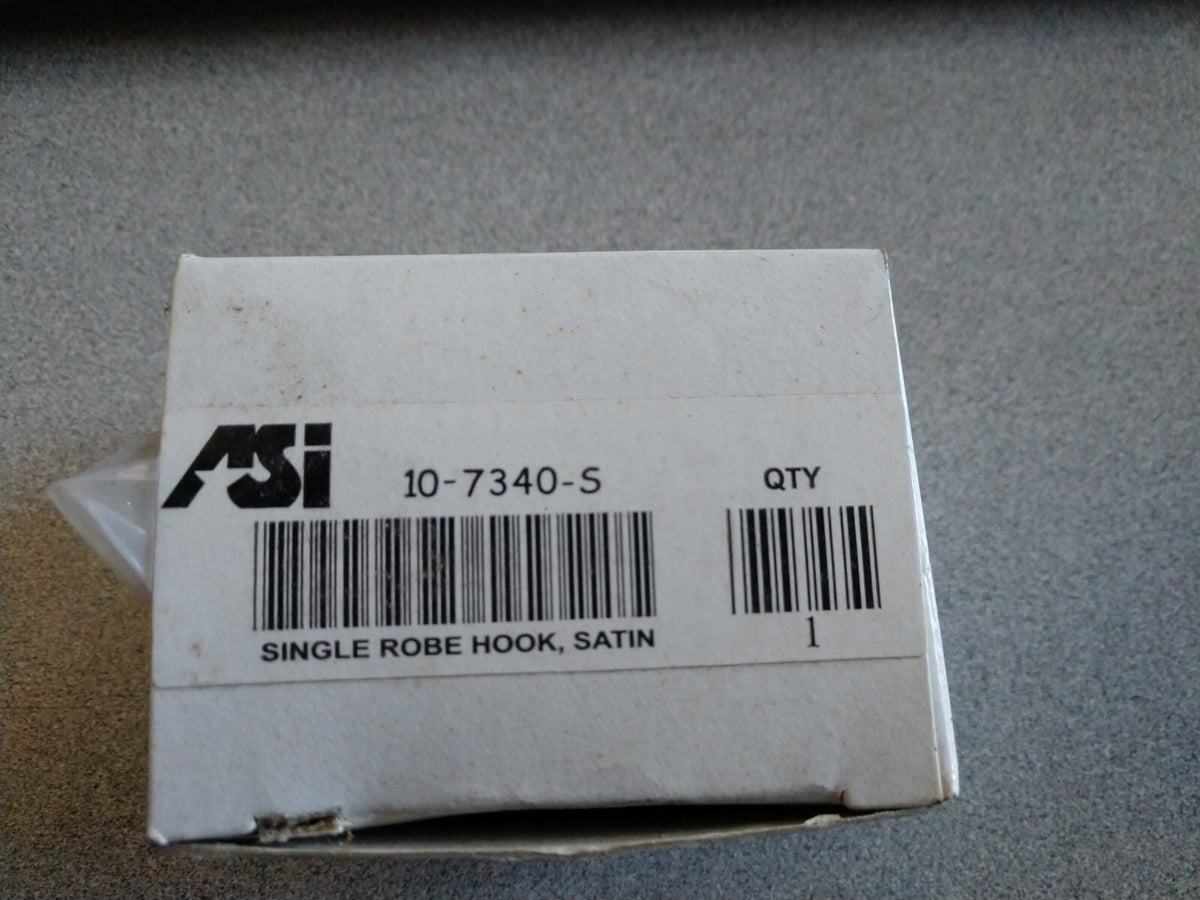

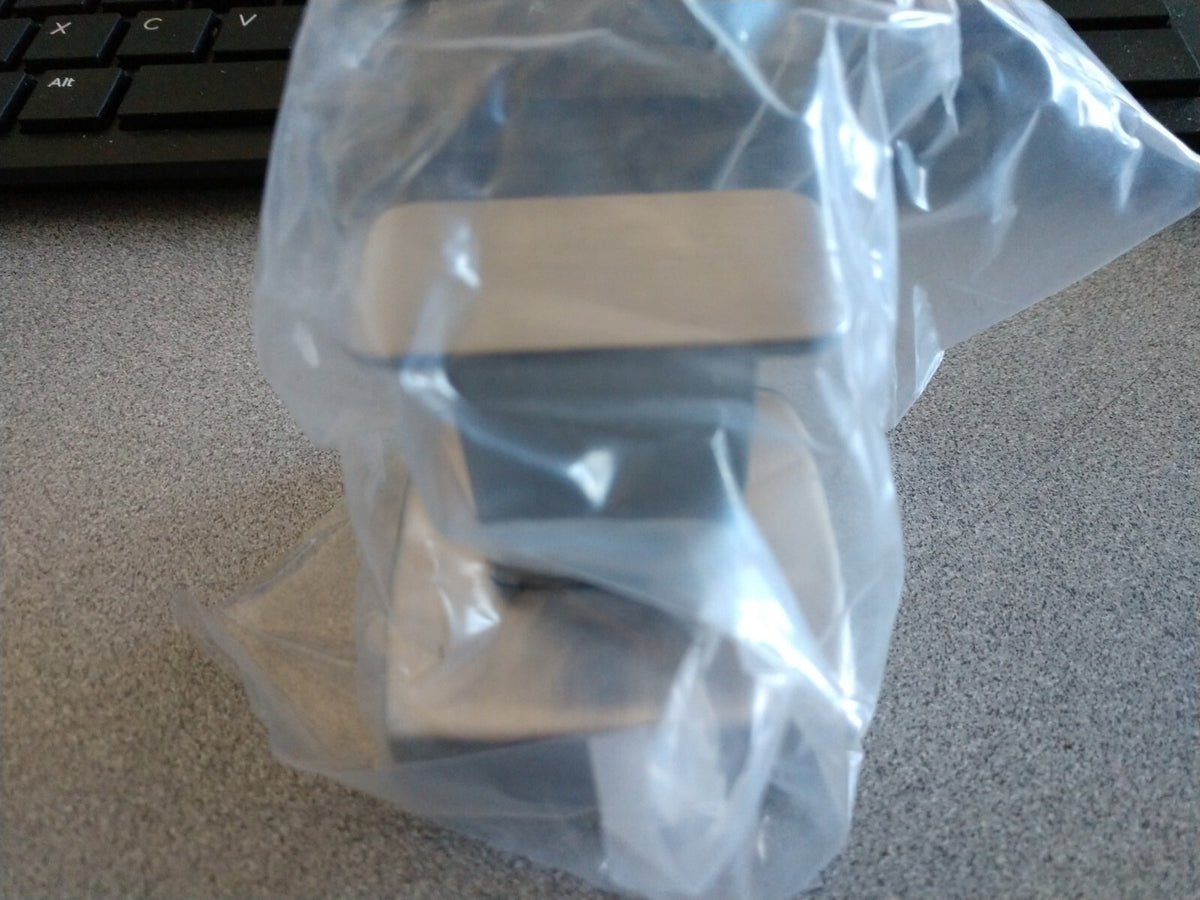

UP FOR SALE IS ONE ASI 10-7340-S SINGLE ROBE HOOK

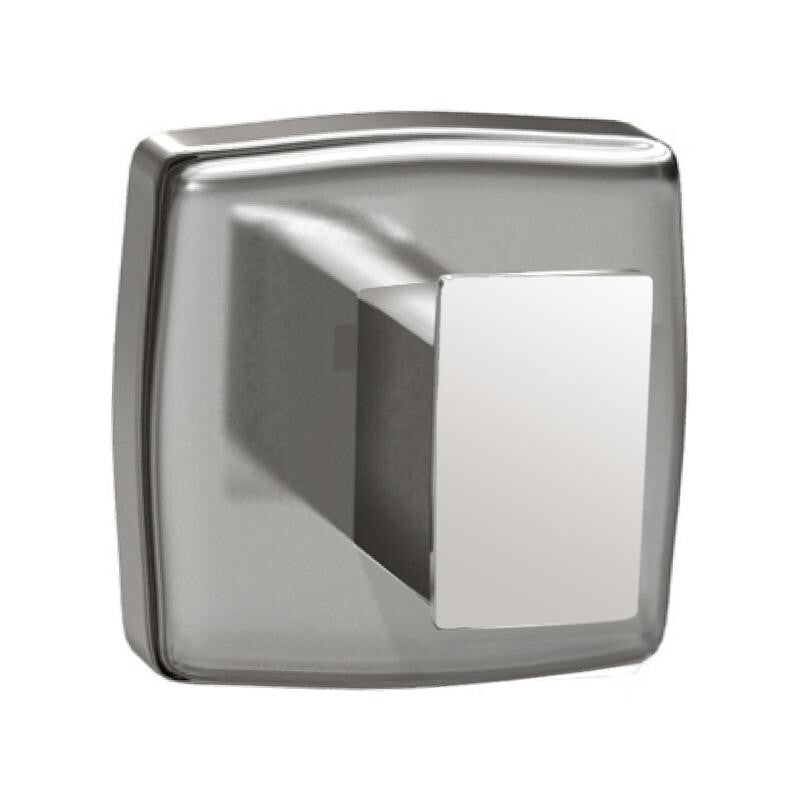

ASI Single Robe Hook 2” Satin Stainless 10-7340-B
$6.95
SATIN STAINLESS STEEL
| Construction | 18 guage, 18-8 Type 304 Stainless Steel |
| Mount | Surface mount |
| Dimensions | 2" Height x 2" Width x 2" Depth |
| Finish | Satin |
| ARCHITECTURAL SPECIFICATION |
| Single Robe Hook shall be fabricated of stainless steel alloy 18-8, type 304. Post shall be 1/2" x 1" (13 X 25) rectangular tubing with formed mounting flange and bracket welded on end. Cap plate shall be 14 gauge, 3/4" x 1-1/4" (19 X 32) with radiused corners and internally welded to outer end. Mounting plate shall be included and shall be 18 gauge. A stainless steel setscrew shall be provided on bottom perimeter of flange to lock unit to mounting plate. Surface finish shall be bright or satin or white powder coated, as chosen by option and indicated by code suffix. |
| INSTALLATION |
| Surface mount unit on door back or wall using two (2) №10 self tapping screws (by others) through holes provided in mounting plate into suitable prepared mountings (by others) or other suitable mounting hardware (by others) to suit door or wall conditions. Hang post and flange assembly on mounting plate and tighten set screw to lock unit to plate. For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines install unit with top of hook 48" (1219) maximum above finished floor (MAX AFF) or 46" (1168) MAX AFF if side reach access over an obstruction (e.g. vanity) with reach depth greater than 10" (254) and less than 25" (635) is only provided or 44" (1118) MAX AFF if forward reach over an obstruction with reach depth greater than 20" (508) and less than 25" (635) is only provided. For general utility install hook with centerline of mounting plate 68" (1727) AFF. |
