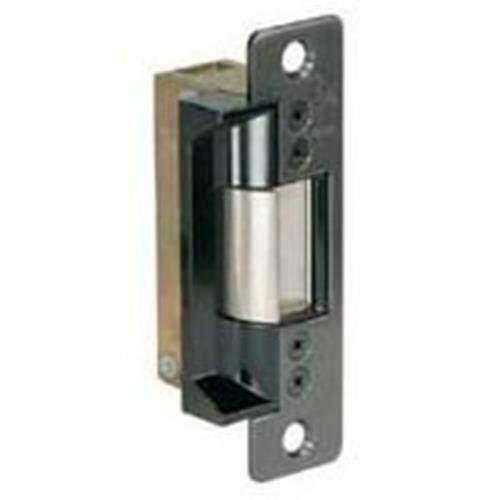

Adams Rite 7101-510-313

Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. For use in aluminum, hollow metal, or wood applications.

Function: Remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.

Certifications

UL 1034 burglary-resistant listed

UL 294 (6th Edition) listed

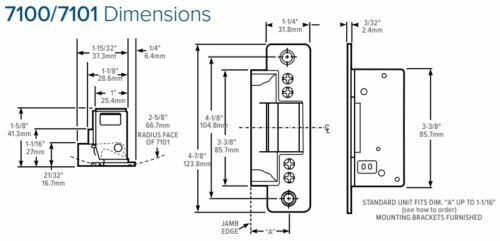

Faceplate:  Radiused to match nose on inactive leaf in a pair of narrow stile doors.   1-1/4" x 4-7/8" [31.8 mm x 123.8 mm

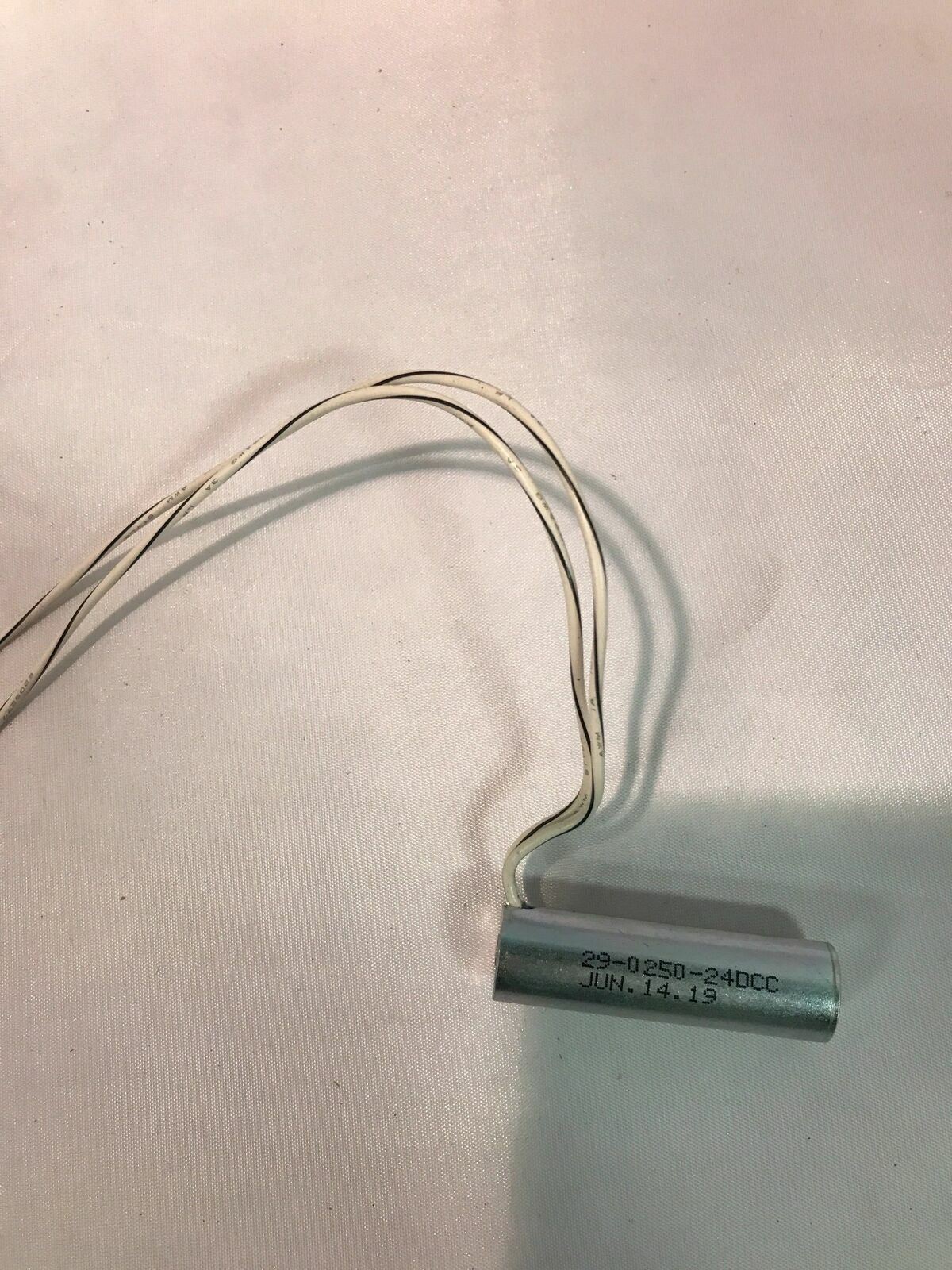

Voltage:24 Volts DC White and Black Wires

Finish: 313 Dark Bronze Anodized

Current Draw: 0.63A at 16 VAC

Fail Safe/Fail Secure: Field selectable at time of installation. Ships Fail Secure.

Standard Package Individually boxed with mounting screws, mounting clips, adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8" [3.2 mm].
