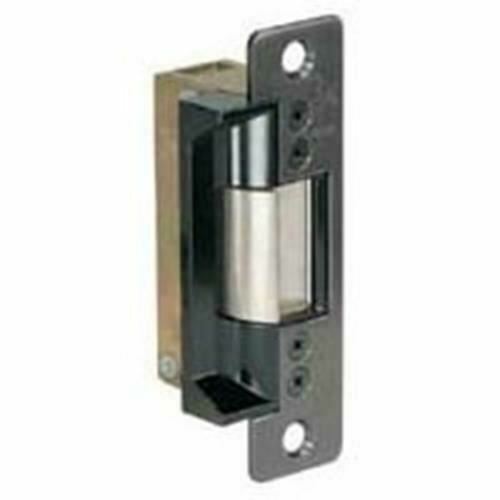

Adams Rite 7100-515-313 FAIL SAFE

Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. For use in aluminum, hollow metal, or wood applications.

Function: Remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.

Certifications

UL 1034 burglary-resistant listed

UL 294 (6th Edition) listed

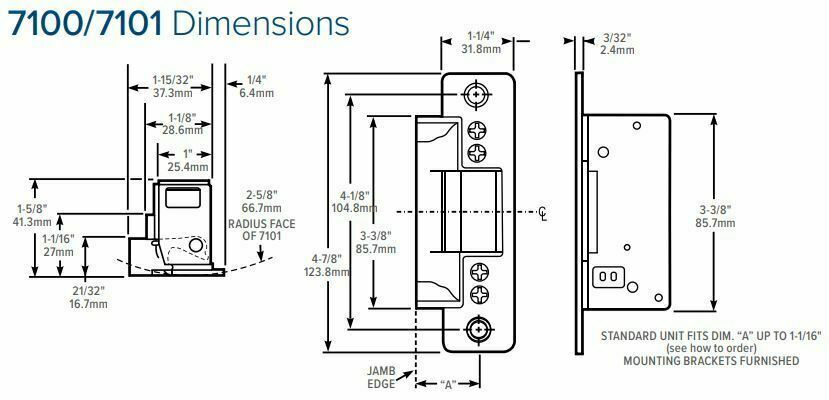

Faceplate:  Radiused to match nose on inactive leaf in a pair of narrow stile doors.   1-1/4" x 4-7/8" [31.8 mm x 123.8 mm

Voltage:24 Volts DC White and Black Wires

Finish: 313 Dark Bronze Anodized

Current Draw: 0.63A at 16 VAC

Fail Safe

Standard Package Individually boxed with mounting screws, mounting clips, adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8" [3.2 mm].
