ACUDOR FB-5060 24 X 24 WC SS FIRE RATED DOOR WITH TURN KNOB & KEY
$359.00
Skip to product information

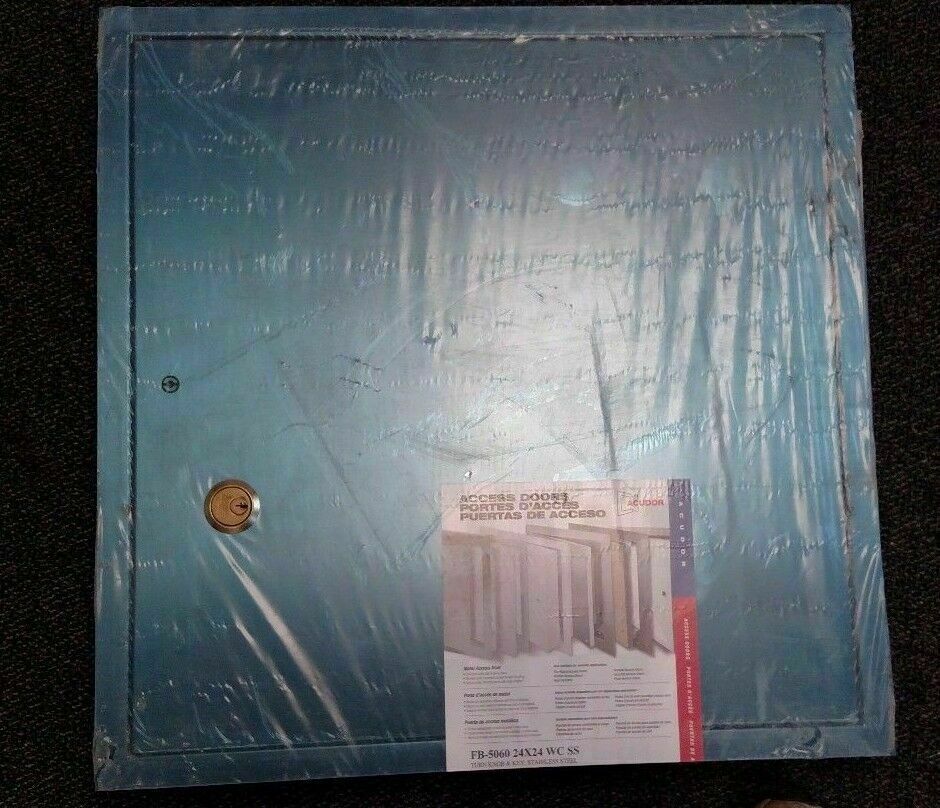

UP FOR SALE IS ONE (1) ACUDOR MODEL FB-5060 24 X 24" X WC SS ACCESS DOOR
ACUDOR FB-5060 24 X 24 WC SS FIRE RATED DOOR WITH TURN KNOB & KEY
$359.00
FIRE RATED, UL LABELED
NOTE:
JOB LEFT OVER, IN ORIGINAL WRAPPING, SOME DIRT ON WRAPPING, SLIGHT BENDS MAY EXIST ON OUTER FRAME DUE TO NATURE OF PRODUCT BUT CAN BE EASILY BENT OUT WITH PLIERS
SELLING ON THE NET FOR 438.00 PLUS SHIPPING ( SEE OUR PRICE )
WITH TURNPIECE LOCK , CYLINDER AND KEY

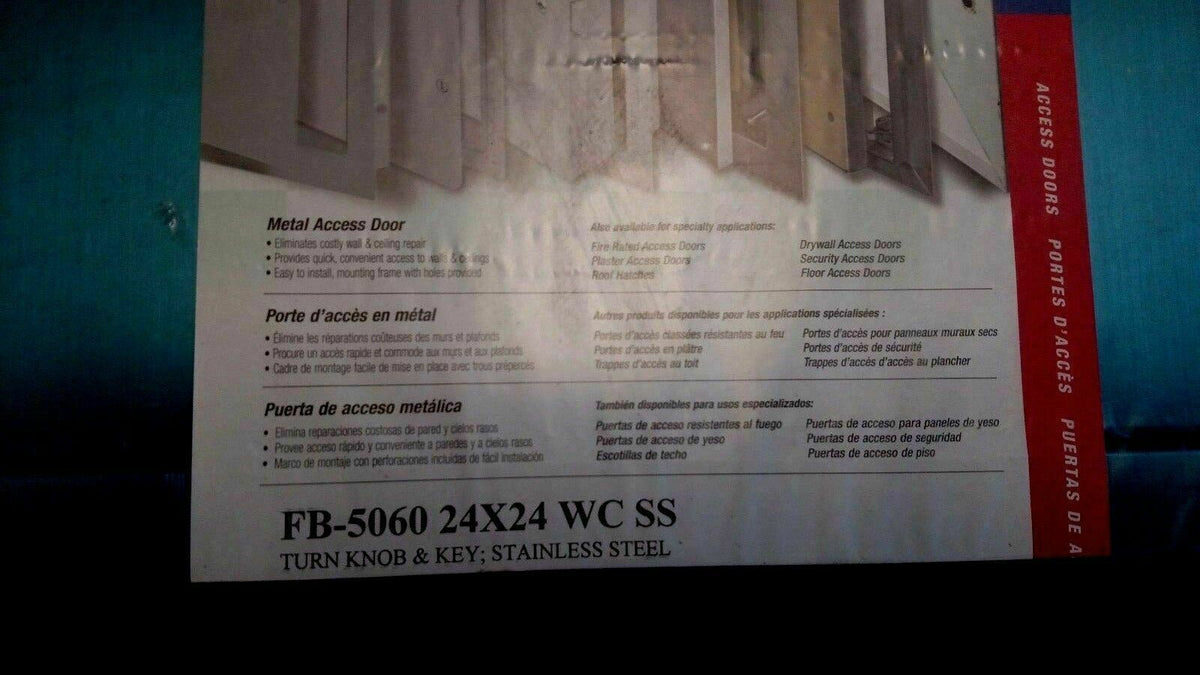

IN ORIGINAL WRAPPER
WILL SHIP VIA UPS INSURED
LOCA GR
The Acudor FB-5060 with stainless steel finish is approved by Underwriters Laboratories (UL) for 1-1/2 hours "B" label in walls and ULC for 2 hours "B" label in walls. Designed to maintain continuity in a 2 hour fire barrier wall, the FB-5060 should be used whenever it is necessary to provide access in fire rated walls, when temperature rise is not a factor.
For drywall applications, this door is available (FB-5060-DW) with a galvanized steel drywall
taping bead flange.
For drywall applications, this door is available (FB-5060-DW) with a galvanized steel drywall
taping bead flange.
Specifications:
Standard Features:
- For Walls
- Material: Steel or Stainless Steel: 16 gauge door,
- 16 gauge mounting frame.
- Door: Flush to frame with reinforced edges.
- Frame: Flange to be 1" wide, mounting frame to have anchor straps.
- Hinge: Concealed
- Fire Rating: UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. (optional)
- Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks.
- Finish: Type 304 - #4 satin polish.
Standard Features:
- Concealed Hinge
- Self-Closing
- Self Latching
- Inside Latch Release
