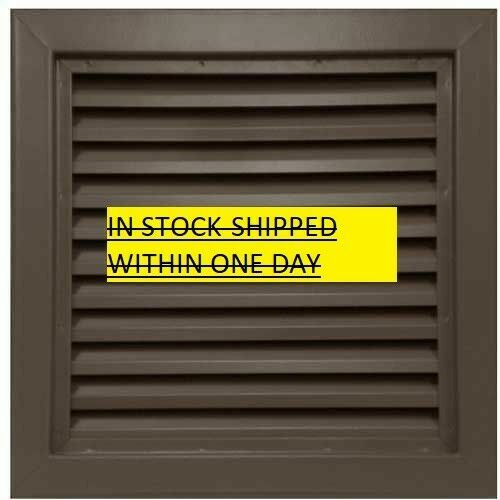

ACTIVAR Steel Door Louver 800A12418B, Inverted "Y" Blades, 24" X 18" BRONZE
$95.00
Skip to product information
UP FOR SALE IS ONE (1) ACTIVAR STEEL DOOR LOUVER
ACTIVAR Steel Door Louver 800A12418B, Inverted "Y" Blades, 24" X 18" BRONZE
$95.00
MODEL 800A1 2418 B
FINISH BRONZE
24 WIDE X 18 HIGH
LOCA-UPGLF
Steel Door Louver 800A12418B, Inverted "Y" Blades, 50% Free Area, 24" X 18", Bronze
Steel Door Louver 800A12418B, Inverted "Y" Blades, 50% Free Area, 24" X 18", Bronze
800 Series Louver With Inverted "Y" blades
Inverted "Y" Blades Recommended for Schools, Class "A" and Institutional Buildings with Non-Vision Construction and 4 Mounting Options
Material: 18 gauge CRS frame and 20 gauge blades. Min size 6" x 4 Max 48" x 80".
Construction: Louvers: Inverted "Y" blades with 1" blade spacing are attached by interlocking construction to the 1" deep, welded frame. Non-vision. Multiple sections can be combined for larger sizes. 800A1 Frame: Self-attaching frame with 1-1/4" trim, mitered and welded corners. Screws fasten through frame into louver core, leaving corridor side of frame free of fasteners.
Material: 18 gauge CRS frame and 20 gauge blades. Min size 6" x 4 Max 48" x 80".
Construction: Louvers: Inverted "Y" blades with 1" blade spacing are attached by interlocking construction to the 1" deep, welded frame. Non-vision. Multiple sections can be combined for larger sizes. 800A1 Frame: Self-attaching frame with 1-1/4" trim, mitered and welded corners. Screws fasten through frame into louver core, leaving corridor side of frame free of fasteners.
PRODUCT SPECS:
- SERIES800A1
- APPLICATIONInterior
- ROUGH OPENING24" X 18"
- FITS DOOR THICKNESS INCHESFor 1-3/4" Door
- FASTENERS#8 X 3/4" Phillips Flathead
- FREE FLOW AREA0.5
- BRANDAir Louvers, Inc.
- MIN SIZE INCHES6 X 4
- COLOR FINISHBronze Powder Coated
- MAX SIZE INCHES48 X 80
- DESCRIPTIONSteel Door Louver
- MANUFACTURERS PART NUMBER800A1 2418B
- MATERIAL18 GA CRS Frame & 20 GA Blades
- BLADE TYPEInverted "Y" Blades
