ACCENTRA SECURITY 8822 FL MORTISE LOCK BODY DORMITORY US26D REVERSIBLE REFURB
ACCENTRA SECURITY 8822 FL MORTISE LOCK BODY DORMITORY US26D REVERSIBLE REFURB

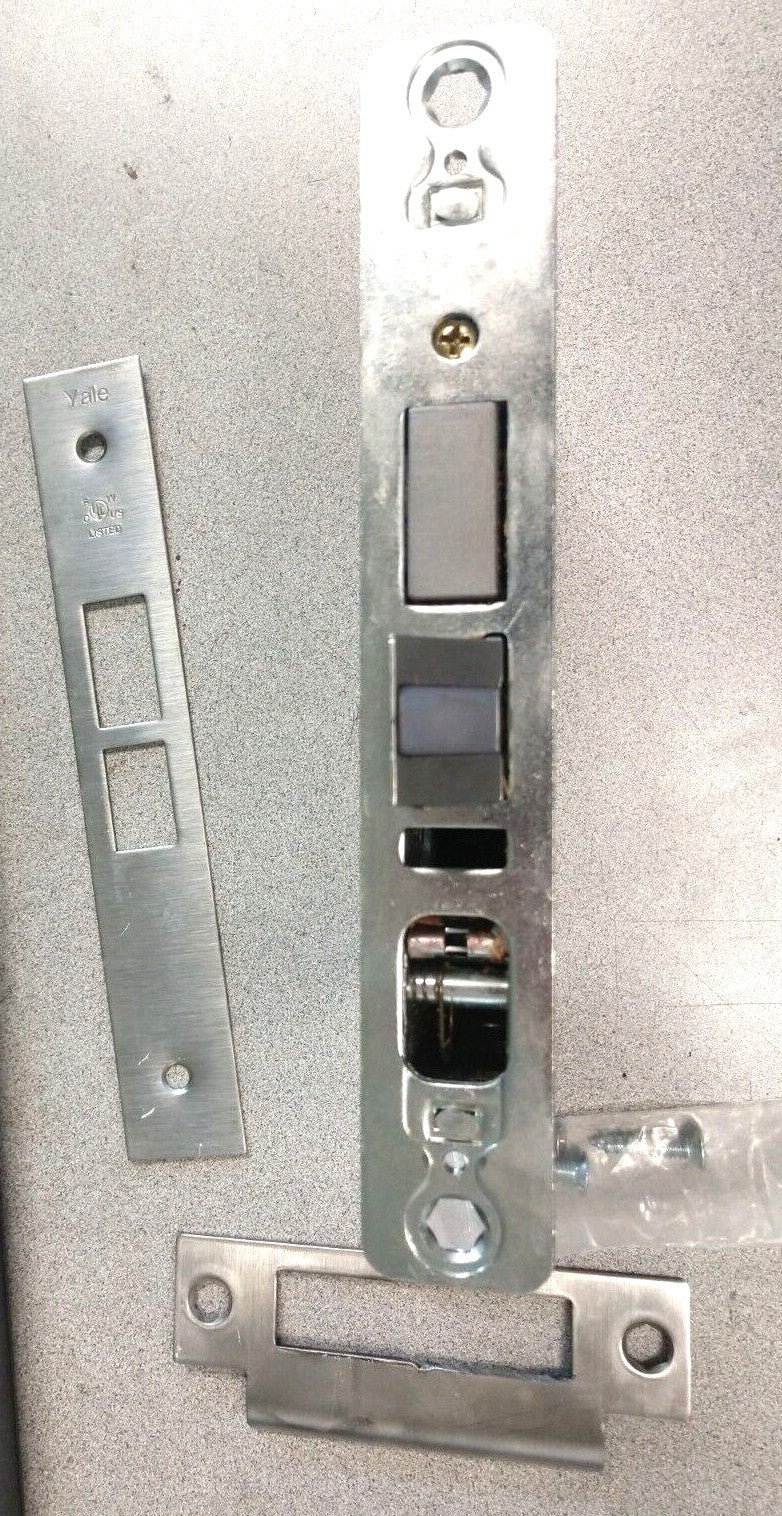

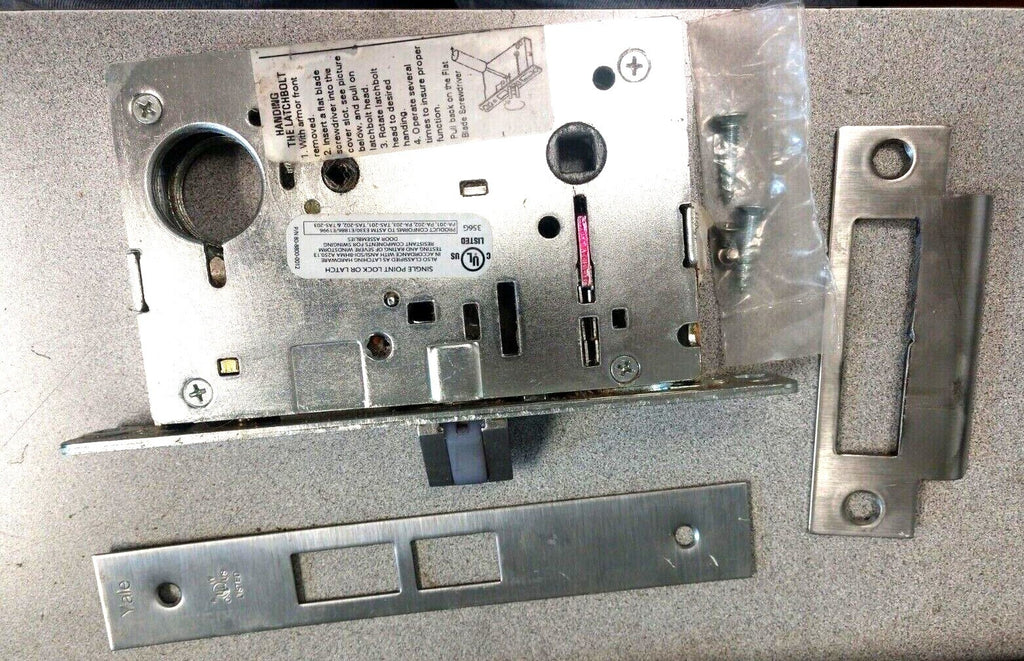

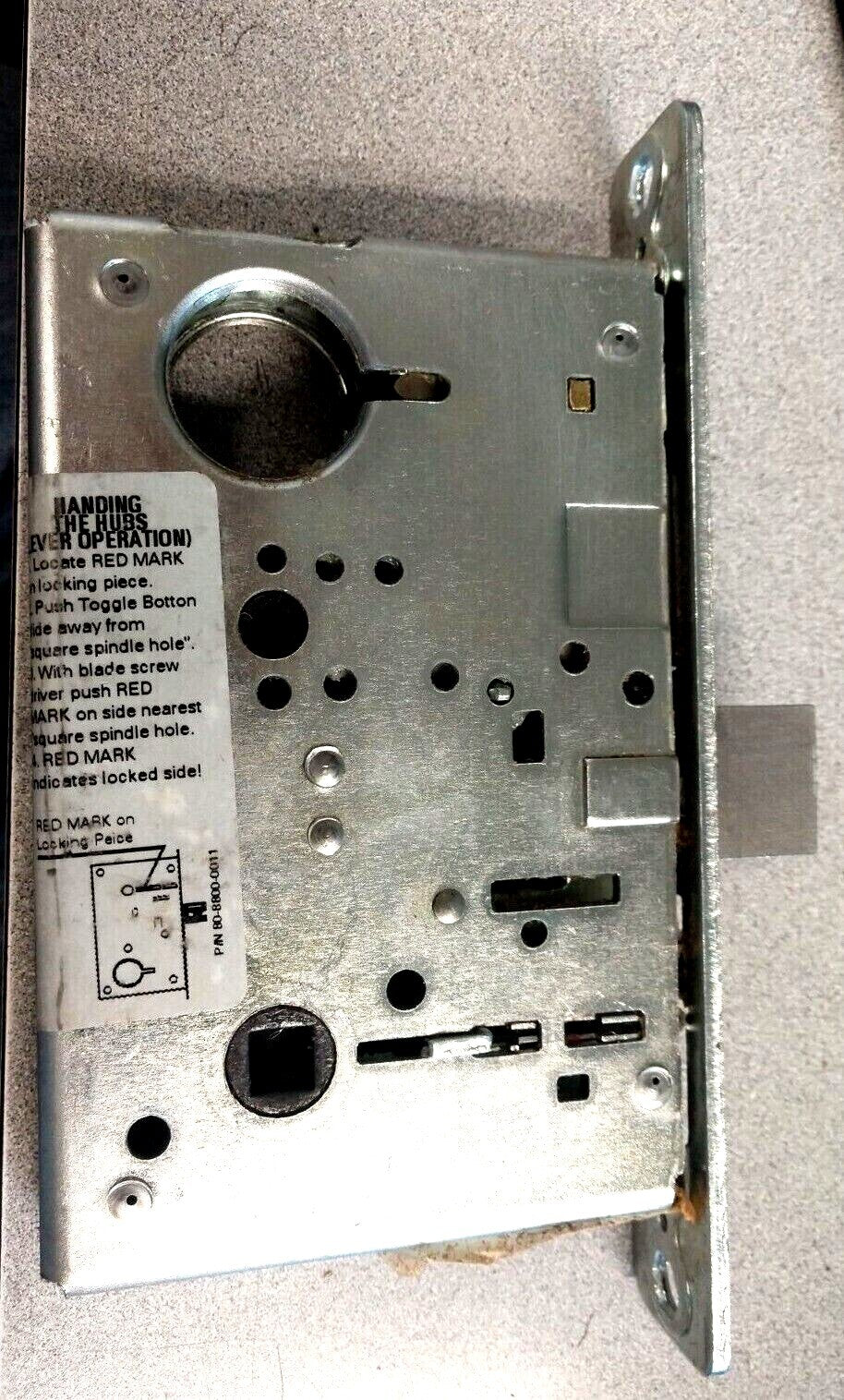

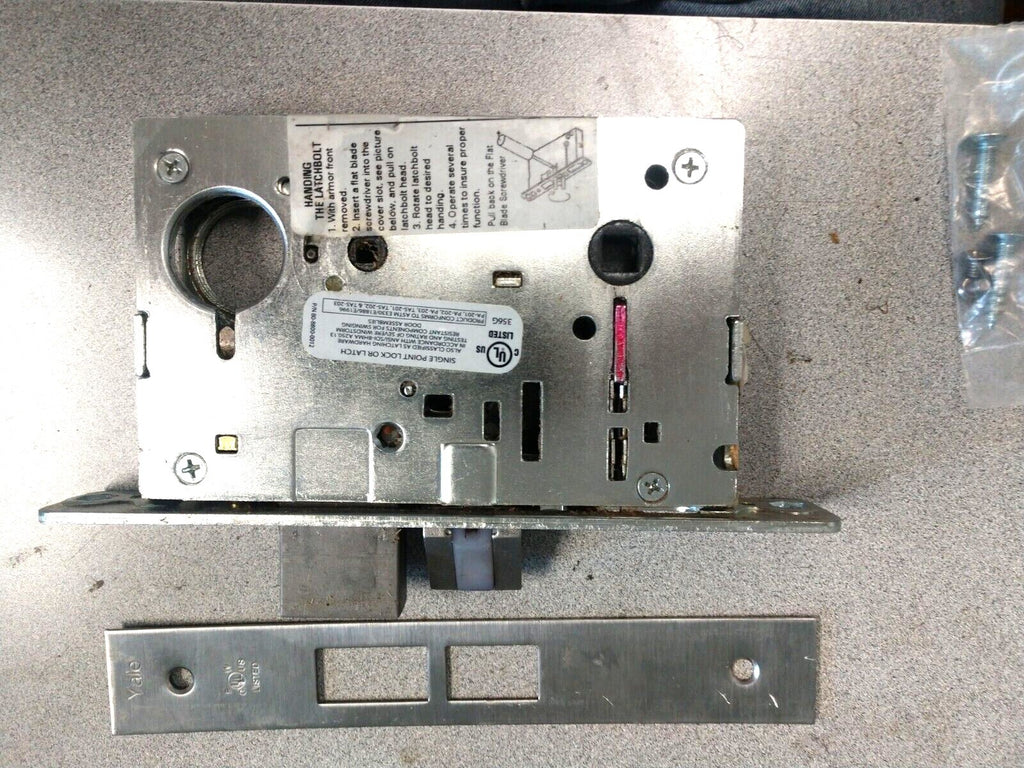

UP FOR SALE IS ONE (1) USED SELLER REFURBISHED ACCENTRA8822FL LOCK BODY ONLY WITH STRIKE AND SCALP KIT
Dormitory or Exit lock - ANSI F13
Latchbolt retracted by knob/lever either side.
Deadbolt operated by key outside and thumbturn inside.
When the deadbolt is projected, outside knob/lever is automatically locked.
Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.
Handing: Yale mortise locks are field reversible. These locks can be converted to accommodate the hand of the door. However, to reduce installation costs, it is recommended that the hand of the door be specified for each lockset ordered.
Door Thickness: 1-3/4" (44mm) standard.
Backset: 2-3/4" (70mm).
Lockcase: Wrought steel, zinc dichromated, 5-1/16" (129mm) x 4-1/8" (105mm) x 1" (25mm).
Armor Front:8" (203mm) x 1-1/4" (32mm)
Latchbolt: 3/4" throw, stainless steel two-piece anti-friction camming action.
Deadbolt: 1" throw, stainless steel with two enclosed hardenedsteel roller armor pins.
Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength.
Strike: Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.
Warranty: Mechanical mortise locks (10) year warranty
