ACCENTRA J 3501 689 DOOR CLOSER TOP JAMB INSTALL W/DEEP REVEALS 2 3/4" THRU 7"

UP OR SALE IS ONE (1)  YALE  J3501 -689 (ALUM)  BARRIER FREE

MEETS ADA "AMERICANS WITH DISABILITIES" CODE

ADJUSTABLE SIZE 1-6

ALUMINUM FINISH BHMA 689

FOR TOP JAMB DEEP REVEAL INSTALLATIONS 2 3/4" TO 7" DOOR REVEALS

NEW FACTORY FRESH

COMPARE!

TRI MOUNTABLE

FULL COVER

ORIGINAL PACKAGING, WITH INSTRUCTIONS AND FASTENERS

WILL SHIP UPS OR USPS INSURED (OUR CHOICE)

PRODUCT DESCRIPTION

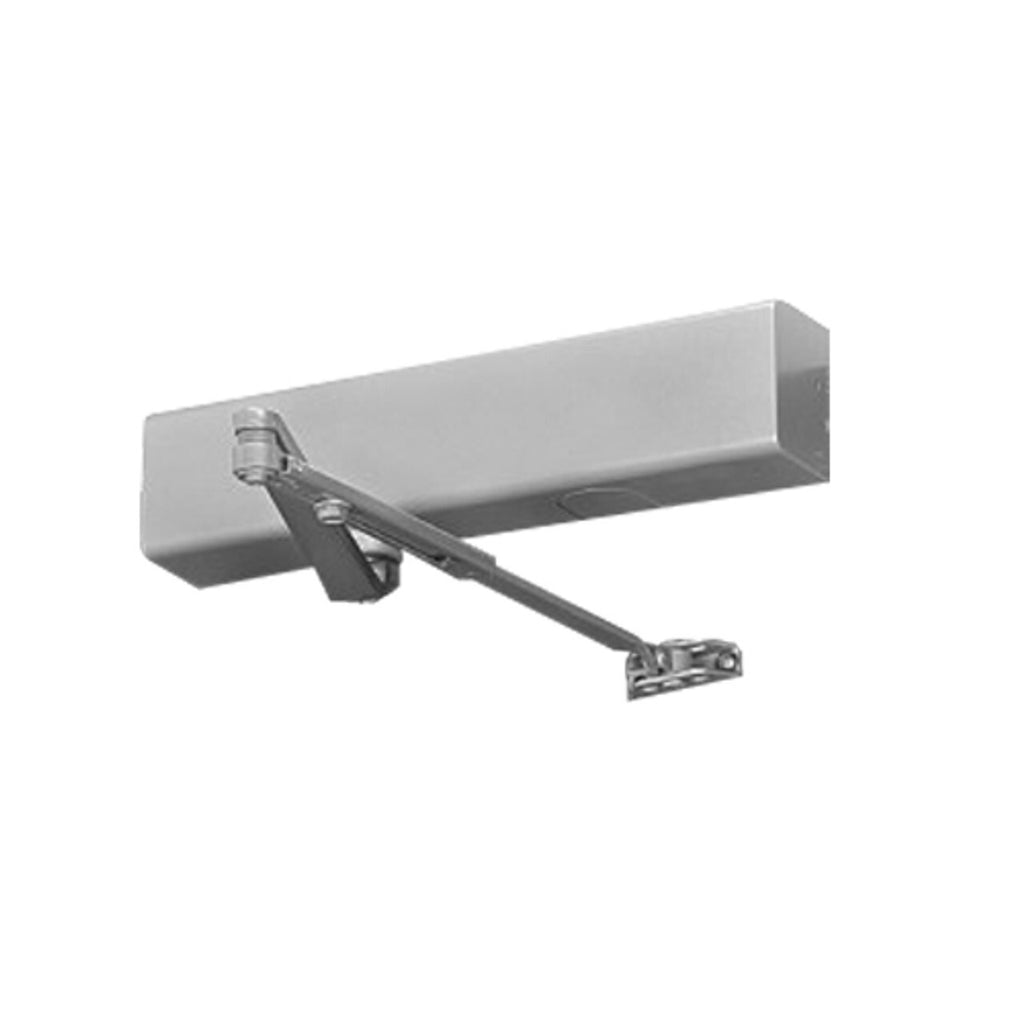

J3501-689 YALE 3000 Series Full Cover Non-Hold Open Door Closers with Top Jamb Reveal 2-3/4 to 7 inch in Aluminum Finish

The YALE J3501-689 Series door closer is used for office and commercial interior and exterior doors. The 3000 Series Door Closers offer the ideal combination of appearance, unwavering quality and durability. The medium-duty closer able to meet the many configurations that occur in outfitting a door closer. This series are certified to ANSI/BHMA A156.4, Grade 1.

Features and Benefits:

• Aluminum finish
• Non hold open
• Handing: Non handed
• Staked valves
• Cast aluminum body
• Rack-and-pinion design
• Exceeds 15 million cycles
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Adjustable spring sizes 1 through 6
• Full cover is included
• This product is manufactured in an ISO 9001 facility
• Door Thickness: 1-3/4" - 2-1/4" (44- 57mm) thick doors
• Top jamb, Reveals 2-3/4" to 7" (to 150°)
